Part Image

NCID9401 - onsemi

Description: The only Digital Isolator available that includes insulation reliability that matches optocouplers; DTI (Distance Through Insulation): ≥ 0.5 mm; Maximum Working Insulation Voltage: 2000 Vpeak; Specifications Guaranteed Over 2.5 V to 5.5 V Supply Voltage and −40°C to 125°C Extended Temperature Range; No insulation material wear out over time up to 1500V, no LED degradation, consistent performance from device-to-device; 100 KV/µs Minimum Common Mode Rejection; Full Duplex, Bi−directional Communication; 8 mm C

Download NCID9401 Model

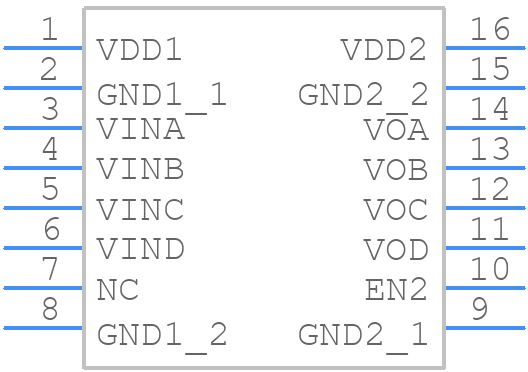

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCID9401 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin SOIC
click to zoom
3D Models
NCID9401 - onsemi  - 3D model - Small Outline Packages - 16-Pin SOIC
click to zoom

NCID9401 Details

  • Manufacturer Part Number:

    NCID9401

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC16 W

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751EN

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-08-25

  • Manufacturer:

    onsemi

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    3 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

NCID9401 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Follow the recommended operating conditions, ensure proper thermal management, and consider using a thermal pad or heat sink to dissipate heat. Also, ensure that the device is properly soldered and the PCB is free of defects.
  • The maximum allowable voltage on the VCC pin is 3.6V. Exceeding this voltage can cause permanent damage to the device.
  • Follow the recommended power-up and power-down sequences in the datasheet to ensure proper device operation and prevent latch-up or other issues.
  • The recommended input impedance for the differential input pins is 100 ohms. This ensures optimal signal integrity and minimizes reflections.
