Part Image

NCL2801CDADR2G - onsemi

Description: Valley Count Frequency Foldback; Dynamic Response Enhancer; Soft/Fast OVP; THD Enhancer; Line level feed-forward; Protections - Brown Out - Thermal Shutdown - OVP - Over Current limitation - Pin open/short protection; Wide Vcc (10.5~28 V) range/ 3 Vcc startup level; OTA Error Amp; High PSRR: Typ. 95 dB at 20 mA, f = 1 kHz

Download NCL2801CDADR2G Model

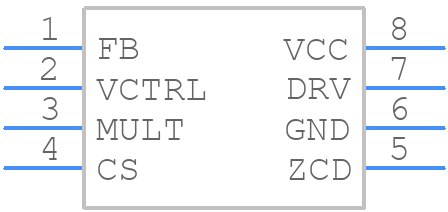

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCL2801CDADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07 ISSUE AK
click to zoom
3D Models
NCL2801CDADR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07 ISSUE AK
click to zoom

NCL2801CDADR2G Details

  • Manufacturer Part Number:

    NCL2801CDADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-11-14

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    27 V

  • Input Voltage-Min:

    10.5 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCL2801CDADR2G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are also recommended.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's power dissipation at high temperatures.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage below 5V.
  • Yes, but ensure proper conformal coating and follow the recommended PCB assembly and handling guidelines to prevent moisture-related issues.
  • Check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly decoupled and that the output capacitor is of sufficient value and type.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCL2801CDADR2G Overview

Use the download button to access the NCL2801CDADR2G schematic symbol, PCB footprint, and 3D model.
