NCL2801CDFDR2G - onsemi

Description: Valley Count Frequency Foldback; Dynamic Response Enhancer; Soft/Fast OVP; THD Enhancer; Line level feed-forward; Protections - Brown Out - Thermal Shutdown - OVP - Over Current limitation - Pin open/short protection; Wide Vcc (10.5~28 V) range/ 3 Vcc startup level; OTA Error Amp; High PSRR: Typ. 95 dB at 20 mA, f = 1 kHz

Download NCL2801CDFDR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

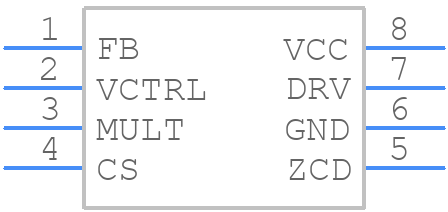

NCL2801CDFDR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCL2801CDFDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCL2801CDFDR2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCL2801CDFDR2G Details

  • Manufacturer Part Number:

    NCL2801CDFDR2G

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCL2801CDFDR2G Overview

Use the download button to access the NCL2801CDFDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCL28, or try a keyword search, such as Switching Regulator or Controllers
