Part Image

NCL30030B3DR2G - onsemi

Description: Proprietary Multiplier Based CrM PFC Stage; Bi-Level Line Dependent PFC Boost Voltage; Boost Diode Short-Circuit Protection; Feedforward Control of PFC loop; Adjustable PFC Disable Threshold; Quasi-Resonant Current Mode Flyback Controller; Valley Lockout and 4 valley operation; Frequency foldback with minum frequency clamp; Timer-based overload protection; Winding and Output Diode Short−Circuit Protection; 4 ms soft start timer; 700 V Rated High Voltage Startup Circuit

Download NCL30030B3DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

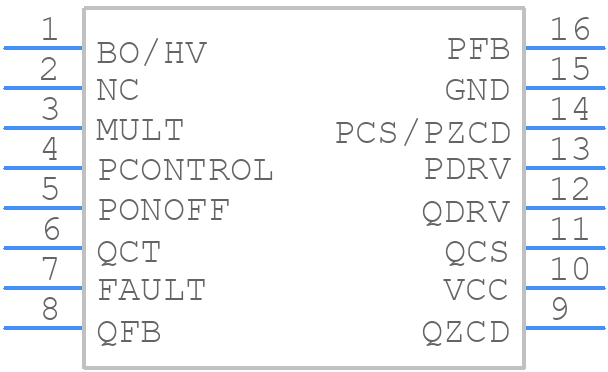

Symbol
NCL30030B3DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCL30030B3DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 NB MISSING PINS 2 AND 13 CASE 751DU ISSUE O
click to zoom
3D Models
NCL30030B3DR2G - onsemi - 3D model - Small Outline Packages - SOIC−16 NB MISSING PINS 2 AND 13 CASE 751DU ISSUE O
click to zoom

NCL30030B3DR2G Details

  • Manufacturer Part Number:

    NCL30030B3DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-16 NB

  • Manufacturer Package Code:

    751DT

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP15/16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    5.23 mA

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    9 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCL30030B3DR2G Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout guidelines. Also, consider derating the device's power handling at high temperatures.
  • The SOA is typically defined by the device's voltage and current ratings. For the NCL30030B3DR2G, the SOA is limited by the maximum voltage rating of 30V and the maximum current rating of 3A. Operating the device within these limits ensures safe and reliable operation.
  • Handle the device by the body or use an ESD wrist strap to prevent static buildup. Use ESD-protected workstations and follow proper handling and storage procedures to prevent ESD damage.
  • Store the device in its original packaging or in a dry, cool place. Avoid exposing the device to moisture, extreme temperatures, or physical stress. Handle the device by the body or use an ESD wrist strap to prevent static buildup.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCL30030B3DR2G Overview

Use the download button to access the NCL30030B3DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCL30, or try a keyword search, such as Display Drivers
