A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for airflow.
To ensure reliable operation in high-temperature environments, follow the recommended operating temperature range, use a heat sink or thermal pad, and consider using a thermal interface material to improve heat transfer.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced lifespan, decreased performance, and potentially even device failure. It's essential to ensure the device operates within the recommended temperature range.
Yes, the NCL30051DR2G can be used in switching regulator applications, but it's essential to ensure the device is properly biased and that the switching frequency is within the recommended range to avoid oscillations and ensure stable operation.
To troubleshoot oscillations or instability issues, check the PCB layout for proper decoupling, ensure the device is properly biased, and verify that the input and output capacitors are suitable for the application. You may also need to add additional filtering or compensation components to stabilize the circuit.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCL30051DR2G Overview

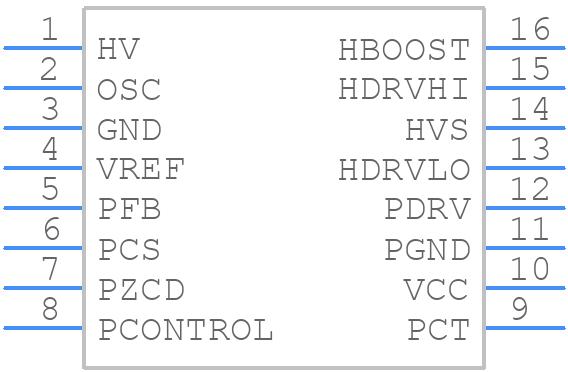

Use the download button to access the NCL30051DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCL30,
or try a keyword search, such as Display Drivers
