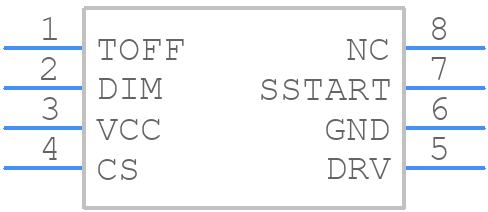

NCL30105DR2G - onsemi

Description: Constant off time current mode control; Adjustable off time (0.5 to 10 µs); Internal leading edge blanking; ± 5% current sense accuracy; Internal Startup Delay; Soft Start; PWM or Analog Dimming Control; Maximum on time protection; Overcurrent protection; Thermal Shutdown

Download NCL30105DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCL30105DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8, 150 mils
click to zoom
3D Models
NCL30105DR2G - onsemi  - 3D model - Small Outline Packages - SOIC 8, 150 mils
click to zoom

NCL30105DR2G Details

  • Manufacturer Part Number:

    NCL30105DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCL30105DR2G Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. Multiple vias can be used to connect the thermal pad to an internal or bottom-side copper plane.
  • A soft-start circuit can be implemented to limit the inrush current during start-up. A capacitor can be added in series with the input voltage to slow down the voltage rise time.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • The device is rated for operation up to 150°C. However, the maximum operating temperature may be limited by the specific application and PCB design. Derating the device's power dissipation may be necessary for high-temperature operation.
  • Use a shielded inductor, keep the switching node (SW) as short as possible, and use a common-mode choke to reduce EMI. Additionally, follow good PCB layout practices, such as separating the power and signal planes.
