NCL30160DR2G - onsemi

Description: 6.3 V to 40 V Input Voltage; Integrated 1 A / 50 mΩ MOSFET; Up to 1.4 MHz Operation; Short LED Shutdown Protection; Thermal Shutdown Protection; No Control Loop Compensation Required; Externally adjustable LED current; Dedicated EN/DIM Pin; Supports all ceramic or capacitor-less output

Download NCL30160DR2G Model

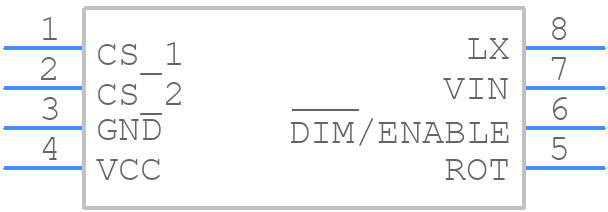

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCL30160DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 CASE 751-07 ISSUE AJ
click to zoom
3D Models
NCL30160DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 CASE 751-07 ISSUE AJ
click to zoom

NCL30160DR2G Details

  • Manufacturer Part Number:

    NCL30160DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    0.02 MHz

NCL30160DR2G Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are recommended. Refer to the onsemi application note AND9173/D for more details.
  • Ensure that the input voltage rises monotonically and does not droop during start-up. A soft-start circuit can be used to limit the inrush current and ensure reliable start-up.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • Yes, the device is rated for operation up to 150°C junction temperature. However, the maximum ambient temperature is 85°C. Ensure proper thermal design and heat sinking to maintain a safe junction temperature.
  • Check the PCB layout for noise coupling and ensure that the input and output capacitors are properly decoupled. Verify that the feedback loop is properly compensated and that the output voltage is within the specified range.
