NCL31000MNITWG - onsemi

Description: I2C or SPI serial interface; High efficiency buck LED driver; Visible Light Communication capable (50kHz bandwidth); High accuracy metrology (+-1%) integrated; Integrated 3.3V buck converter; Adjustable 2.5 to 24V buck converter

Download NCL31000MNITWG Model

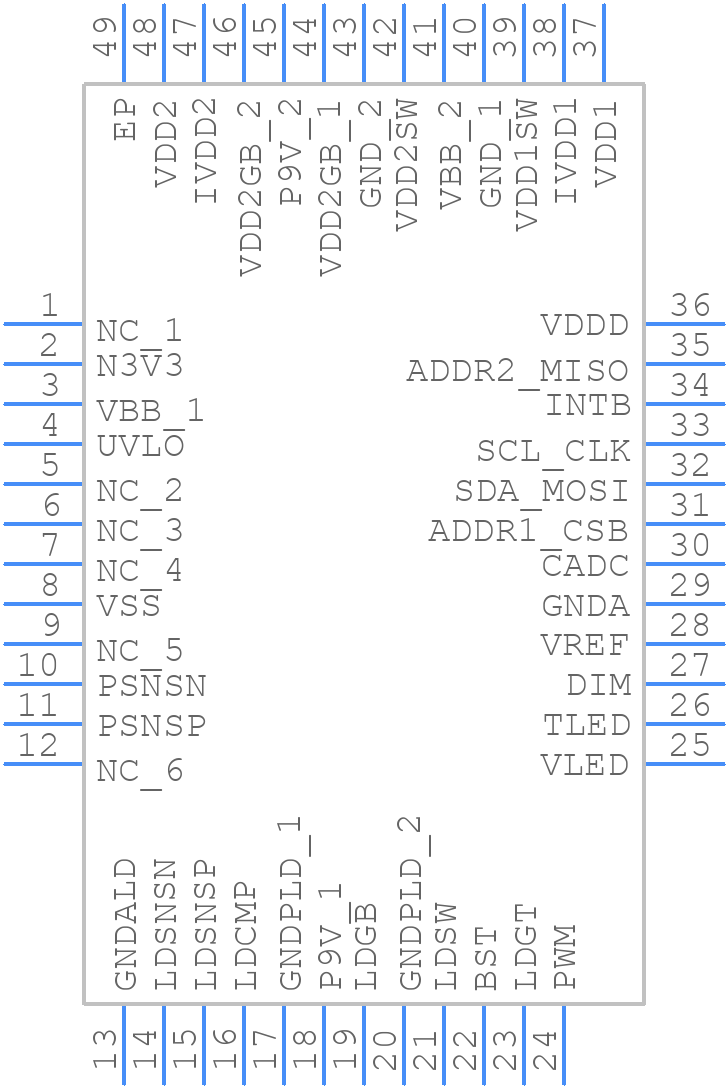

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCL31000MNITWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48 7x7, 0.5P CASE 485EP ISSUE O
click to zoom
3D Models
NCL31000MNITWG - onsemi  - 3D model - Quad Flat No-Lead - QFN48 7x7, 0.5P CASE 485EP ISSUE O
click to zoom

NCL31000MNITWG Details

  • Manufacturer Part Number:

    NCL31000MNITWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN-48

  • Package Description:

    QFN-48

  • Manufacturer Package Code:

    485EP

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    69 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    2.15 mA

  • Supply Voltage-Max:

    57 V

  • Supply Voltage-Min:

    21.5 V

  • Supply Voltage-Nom:

    53 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

NCL31000MNITWG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the IC and to connect it to a thermal plane or a heat sink.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and use a thermal interface material (TIM) with a high thermal conductivity. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal protection mechanisms if necessary.
  • When designing with the NCL31000MNITWG, it's crucial to consider EMI and RFI filtering to ensure compliance with regulatory requirements and to prevent electromagnetic interference. Use a combination of differential and common-mode chokes, capacitors, and resistors to filter out unwanted signals. Also, ensure proper PCB layout and grounding techniques to minimize radiation and susceptibility.
  • When selecting input and output capacitors for the NCL31000MNITWG, consider the operating frequency, voltage rating, and ripple current requirements. Choose capacitors with low ESR, high capacitance, and a suitable voltage rating. For input capacitors, consider using X7R or X5R dielectrics, while for output capacitors, use capacitors with a low ESR and high ripple current capability.
  • Using a different inductor value or type than recommended can affect the performance and stability of the NCL31000MNITWG. A different inductor value can alter the resonant frequency, affecting the converter's efficiency and stability. Using a different inductor type can impact the core losses, saturation characteristics, and temperature rating, which can lead to reduced performance, increased losses, or even device failure.
