NCN1154MUTAG - onsemi

Description: 3:1 High Speed Switch; 5.25 V tolerant on common pins; High Bandwidth of 820 MHz; Capable of passing negative swing signals down to -2V on R/L channel; 1.8 V compatible control pin; Audio channel shunt resistors; Ultra-low THD

Download NCN1154MUTAG Model

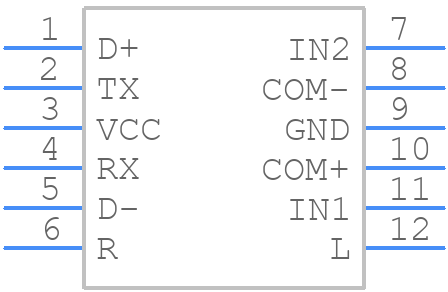

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCN1154MUTAG - onsemi PCB footprint - Other - Other - UQFN12 1.7x2.0, 0.4P CASE 523AE-01 ISSUE A
click to zoom

NCN1154MUTAG Details

  • Manufacturer Part Number:

    NCN1154MUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN12 2.0x1.7, 0.4P

  • Pin Count:

    12

  • Manufacturer Package Code:

    523AE

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6.95

  • Analog IC - Other Type:

    DPDT

  • JESD-30 Code:

    R-XQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • Off-state Isolation-Nom:

    81 dB

  • On-state Resistance Match-Nom:

    0.03 Ω

  • On-state Resistance-Max (Ron):

    7.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.07X.08,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.7 mm
