NCN5110MNTWG - onsemi

Description: KNX certified TP transceiver with embedded PHY layer. 9600 Bauds communication speed.; Two high efficient DC-DC converters + one linear regulator : - DC-DC1 : fixed 3.3 V - DC-DC2 : adjustable between 1.2 and 21 V - 20V linear regulator; Bus Current Consumption up to 40 mA; Supervision of temperature and of the power regulators; Direct coupling of analog signaling to Host; Extended ambient temperature range -40 to +105 degC

Download NCN5110MNTWG Model

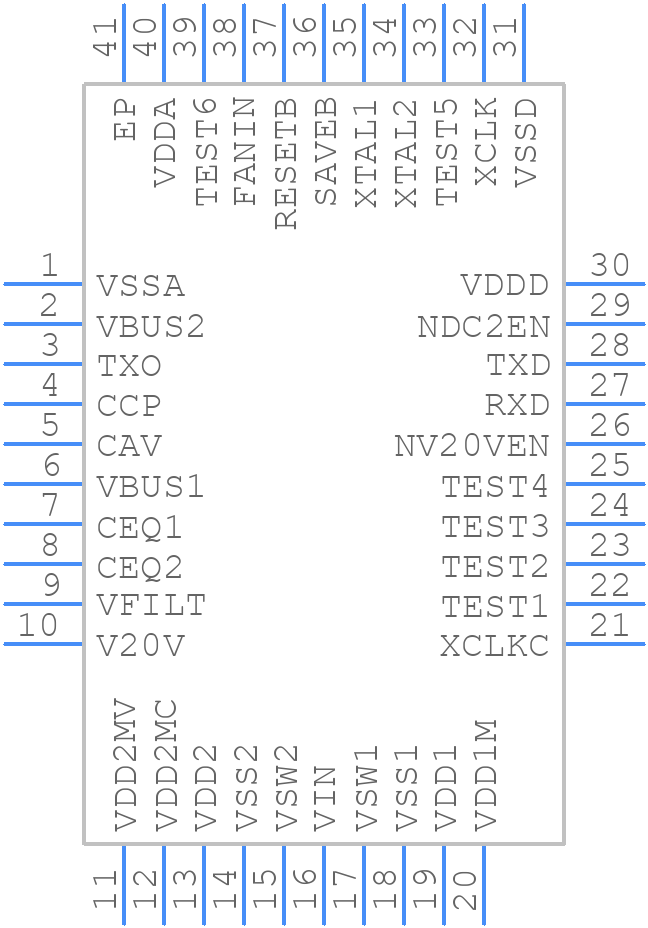

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCN5110MNTWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN40 6x6, 0.5P_2023
click to zoom
3D Models
NCN5110MNTWG - onsemi  - 3D model - Quad Flat No-Lead - QFN40 6x6, 0.5P_2023
click to zoom

NCN5110MNTWG Details

  • Manufacturer Part Number:

    NCN5110MNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-40

  • Manufacturer Package Code:

    485AU

  • Country Of Origin:

    Thailand

  • Factory Lead Time:

    45 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.38

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    INTERFACE CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

NCN5110MNTWG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCN5110MNTWG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • The NCN5110MNTWG requires a stable power supply with a minimum of 1.8V and a maximum of 3.6V. Decoupling capacitors (e.g., 10uF and 100nF) should be placed close to the device, with the larger capacitor connected to the power plane and the smaller capacitor connected to the ground plane.
  • The NCN5110MNTWG supports data transfer rates up to 100 Mbps, making it suitable for high-speed applications such as automotive and industrial control systems.
  • The NCN5110MNTWG can be configured for different operating modes (e.g., normal, sleep, and shutdown) using the EN pin. The device can also be configured for different data transfer modes (e.g., half-duplex and full-duplex) using the TXEN and RXEN pins.
  • The NCN5110MNTWG has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be operated within a temperature range of -40°C to 125°C. Thermal vias and heat sinks can be used to improve heat dissipation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCN5110MNTWG Overview

Use the download button to access the NCN5110MNTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCN51, or try a keyword search, such as Network Interfaces
