NCN5120MNTWG - onsemi

Description: • Replaced by NCN5121 • 9600 baud KNX Communication Speed • Supervision of KNX Bus Voltage • Supports Bus Current Consumption up to 13 and 26 mA • Selectable KNX Bus Current (0.5 mA/ms and 1.0 mA/ms) • High Efficient DC−DC Converters ♦ 3.3 V Fixed ♦ 3.3 V to 21 V Selectable • Control and Monitoring of Power Regulators • Linear 20 V Regulator • Prepared for Sleep Mode • Buffering of Sent Data Frames (Extended Frames Supported) • Selectable UART or SPI Interface to Host Controller • Selectable UA

Download NCN5120MNTWG Model

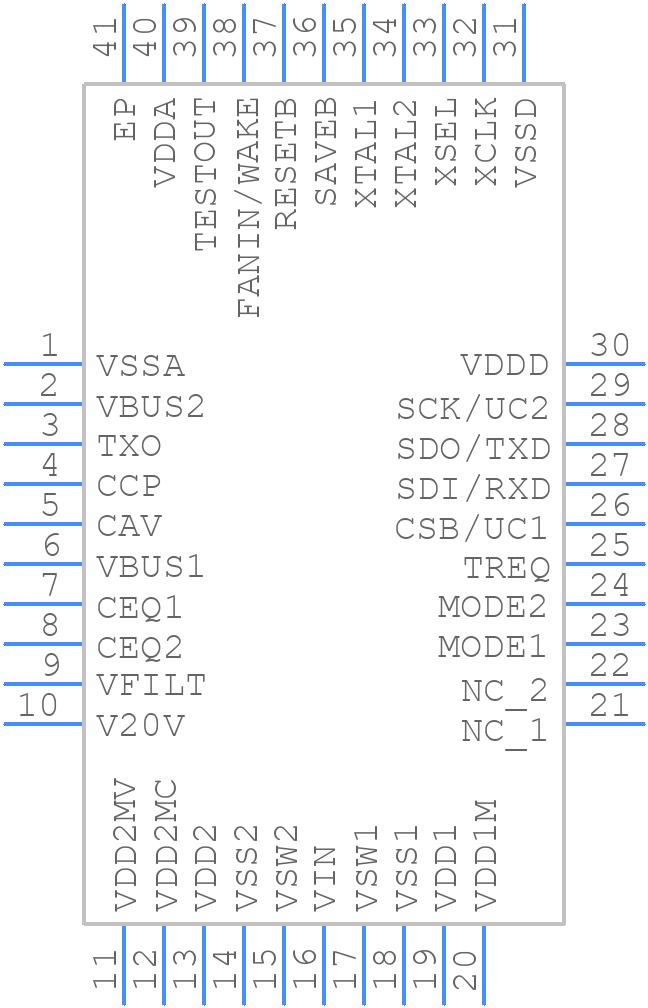

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCN5120MNTWG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN40 6x6, 0.5P_
click to zoom
3D Models
NCN5120MNTWG - onsemi  - 3D model - Quad Flat No-Lead - QFN40 6x6, 0.5P_
click to zoom

NCN5120MNTWG Details

  • Manufacturer Part Number:

    NCN5120MNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN40 6x6, 0.5P, 3.2x3.2EP

  • Package Description:

    QFN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    485AU

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    37 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    ETHERNET TRANSCEIVER

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

NCN5120MNTWG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid thermal hotspots.
  • Critical timing parameters include the input rise and fall times, output delay, and clock-to-output delay. Refer to the datasheet for specific values and ensure proper signal integrity.
  • Implement ESD protection using TVS diodes or ESD arrays on the input and output pins. Ensure proper PCB layout and routing to minimize ESD susceptibility.
  • Power up the device in the following sequence: VCC, then VDD. Ensure a slow voltage ramp-up (10-20 ms) to prevent latch-up and damage.
