Part Image

NCN5150DG - onsemi

Description: Single-chip M-Bus transceiver; UART communication speeds up to 38400 baud; Integrated 3.3 V VDD LDO regulator with extended peak current capability of 15 mA; Supports powering slave device from the bus or from external power supply; Adjustable I/O levels; Adjustable constant current sink up to 2 or 6 unit loads depending on the package; Low bus voltage operation; Extended current budget for external circuits: at least 0.88 mA; Polarity independent; Power-fail function; Fast startup - no external transistor

Download NCN5150DG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

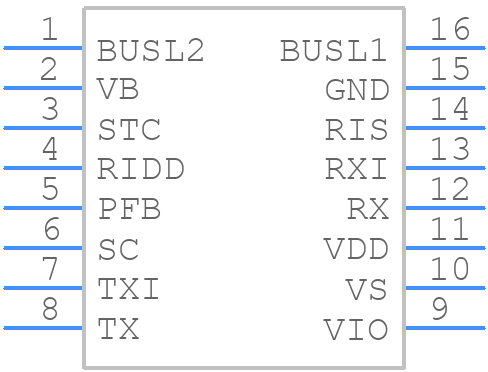

Symbol
NCN5150DG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCN5150DG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom
3D Models
NCN5150DG - onsemi - 3D model - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom

NCN5150DG Details

  • Manufacturer Part Number:

    NCN5150DG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Interface IC Type:

    LINE TRANSCEIVER

  • Moisture Sensitivity Level:

    2

NCN5150DG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCN5150DG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce EMI.
  • Proper thermal management for the NCN5150DG involves providing a heat sink or thermal pad, ensuring good airflow, and keeping the device away from other heat sources.
  • The NCN5150DG can handle input voltages up to 18V, but it's recommended to operate within the specified input voltage range of 7V to 15V for optimal performance and reliability.
  • The NCN5150DG is rated for operation up to 125°C, but it's recommended to derate the device's performance and consider additional thermal management for high-temperature applications.
  • Troubleshooting the NCN5150DG involves checking the input voltage, output voltage, and current, as well as verifying the PCB layout and thermal management. Consult the datasheet and application notes for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCN5150DG Overview

Use the download button to access the NCN5150DG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCN51, or try a keyword search, such as Line Driver or Receivers
