NCN5150DR2G - onsemi

Description: Single-chip M-Bus transceiver; UART communication speeds up to 38400 baud; Integrated 3.3 V VDD LDO regulator with extended peak current capability of 15 mA; Supports powering slave device from the bus or from external power supply; Adjustable I/O levels; Adjustable constant current sink up to 2 or 6 unit loads depending on the package; Low bus voltage operation; Extended current budget for external circuits: at least 0.88 mA; Polarity independent; Power-fail function; Fast startup - no external transistor

Download NCN5150DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

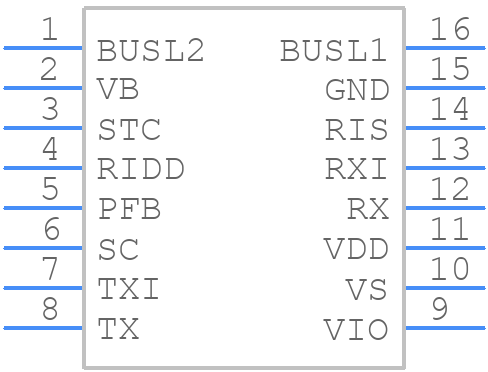

NCN5150DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCN5150DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom
3D Models
NCN5150DR2G - onsemi - 3D model - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom

NCN5150DR2G Details

  • Manufacturer Part Number:

    NCN5150DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Nom:

    3.3 V

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30
