Description:Fully GSM Compliant; 100% compatible with ISO 7816-3, EMV and GIE-CB standards; Wide battery supply voltage range : 2.7 < Vcc < 5.5V; Programmable CRD_VCC supply handles 1.8V, 3V or 5V card operation.; Programmable rise and fall card clock slopes; Programmable card clock divider; Built-in Chip Select logic allows parallel coupling operation; ESD protection on card pins ( 8 kV, Human Body Model ); Supports up to 40 MHz input Clock ; Built-in programmable CRD_CLK stop function handles Run or Low state.; Progr
A good PCB layout for the NCN6001DTBR2G involves placing the device close to the power source, using a solid ground plane, and minimizing the length of the input and output traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended operating conditions, use a suitable output capacitor, and ensure that the input voltage is within the recommended range. Additionally, it's recommended to add a 10nF capacitor between the VIN pin and the GND pin to improve stability.
The maximum output current of the NCN6001DTBR2G is 1A. However, it's recommended to derate the output current based on the ambient temperature and the input voltage to ensure reliable operation.
The NCN6001DTBR2G is rated for operation up to 125°C. However, it's recommended to derate the output current and ensure proper heat sinking to prevent overheating. It's also recommended to consult the datasheet and application notes for more information on high-temperature operation.
To troubleshoot issues with the NCN6001DTBR2G, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that there are no shorts or opens on the PCB. Consult the datasheet and application notes for more information on troubleshooting and fault detection.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCN6001DTBR2G Overview

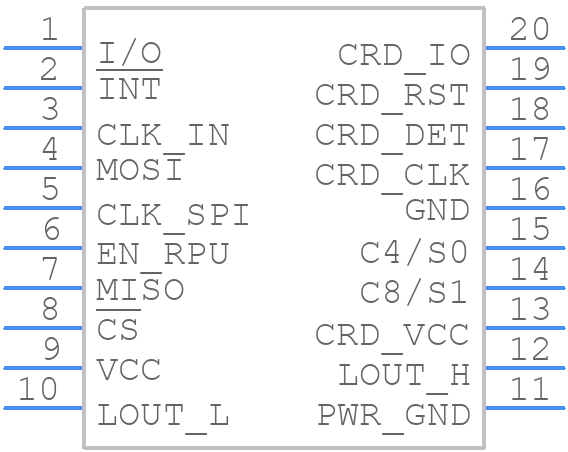

Use the download button to access the NCN6001DTBR2G schematic symbol, PCB footprint, and 3D model.
