FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Voltage-Max:
5 V
Supply Voltage-Min:
2.7 V
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
TIN
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
7 mm
NCN6004AFTBR2G Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the IC and to connect it to a heat sink or a thermal plane.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper PCB design guidelines for thermal management.
The NCN6004AFTBR2G has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and avoid touching the device's pins or exposed pads. For PCB design, consider adding ESD protection diodes or resistors to sensitive inputs.
The NCN6004AFTBR2G is designed to operate in a variety of environments, including those with high vibration. However, it's essential to follow proper PCB design and assembly guidelines to ensure the device is securely attached to the board and can withstand the vibration. Consider using a rigid PCB material and a robust mounting method.
To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage and current, as well as the output voltage and current. Check for any signs of overheating, and ensure that the device is properly configured and connected. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet for specific troubleshooting guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCN6004AFTBR2G Overview

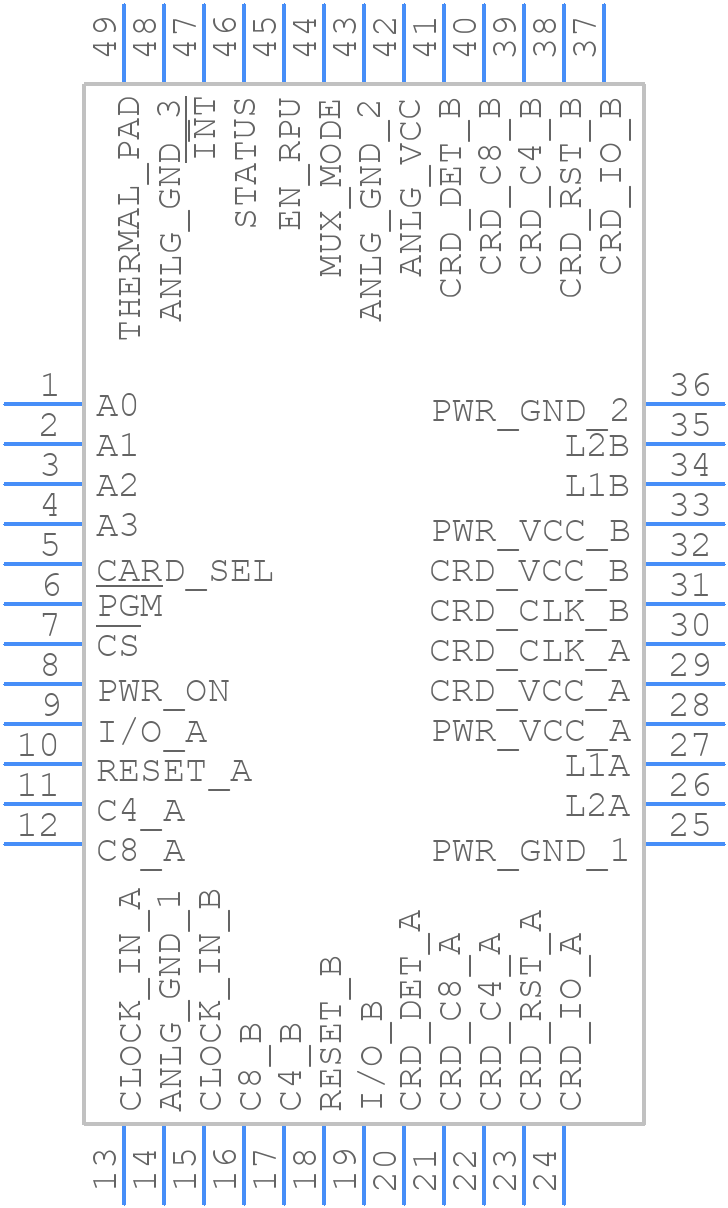

Use the download button to access the NCN6004AFTBR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCN60,
or try a keyword search, such as Other Interface ICs
