The recommended PCB layout for the NCP1010AP100G is to use a 4-layer board with a solid ground plane on the bottom layer, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke and a bypass capacitor to filter the input voltage.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input voltage is within the recommended range, and that the output capacitor is properly sized. It's also recommended to add a small resistor (e.g. 10 ohms) in series with the output capacitor to dampen any oscillations.
The maximum output current of the NCP1010AP100G is 1A, but it's recommended to derate the output current based on the ambient temperature and the input voltage. Refer to the datasheet for more information on output current derating.
The NCP1010AP100G is rated for operation up to 125°C, but it's recommended to derate the output current and ensure proper heat sinking to prevent overheating. Additionally, ensure that the input voltage and output load are within the recommended specifications.
To troubleshoot issues with the NCP1010AP100G, start by checking the input voltage and output voltage to ensure they are within the recommended specifications. Check for any signs of overheating, and ensure that the PCB layout and component values are correct. Use an oscilloscope to check for any oscillations or noise on the output voltage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1010AP100G Overview

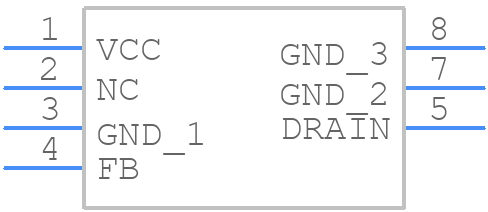

Use the download button to access the NCP1010AP100G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10,
or try a keyword search, such as Switching Regulator or Controllers
