A recommended PCB layout for the NCP1027P065G includes a thermal pad connected to a large copper area on the PCB to dissipate heat. The copper area should be connected to a ground plane to reduce thermal resistance. Additionally, vias should be placed under the thermal pad to connect it to the copper area.
To ensure stability, the NCP1027P065G requires a minimum output capacitance of 10uF and a maximum ESR of 1 ohm. Additionally, the input capacitor should be placed close to the VIN pin, and the output capacitor should be placed close to the VOUT pin. A 10nF capacitor should also be placed between the FB pin and AGND to filter noise.
The maximum ambient temperature range for the NCP1027P065G is -40°C to 125°C. However, the device's performance and reliability may degrade at temperatures above 85°C. It is recommended to operate the device within a temperature range of -20°C to 70°C for optimal performance.
Yes, the NCP1027P065G is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is recommended to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
The power dissipation of the NCP1027P065G can be calculated using the following formula: Pd = (VIN - VOUT) x IOUT x η, where Pd is the power dissipation, VIN is the input voltage, VOUT is the output voltage, IOUT is the output current, and η is the efficiency of the device. The efficiency of the device can be obtained from the datasheet.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1027P065G Overview

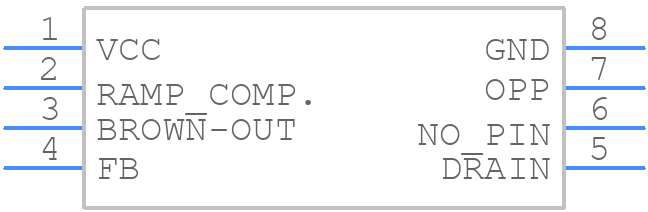

Use the download button to access the NCP1027P065G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10,
or try a keyword search, such as Switching Regulator or Controllers
