NCP1034DR2G - onsemi

Description: Input voltage up to 100V; 2 A Output Drive Capability; 1.25 V +/-1.5% feedback voltage across temperature; External Frequency Synchronization; Programmable switching frequency up to 500 kHz

Download NCP1034DR2G Model

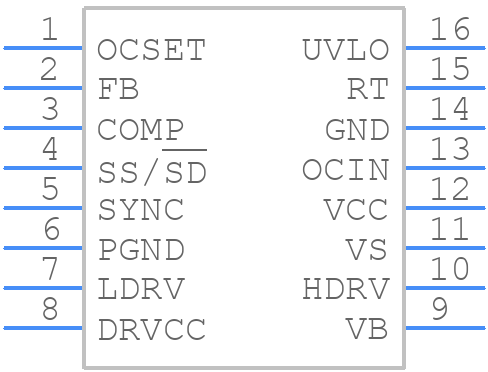

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1034DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - MFR-25FTE52-12K
click to zoom
3D Models
NCP1034DR2G - onsemi  - 3D model - Small Outline Packages - MFR-25FTE52-12K
click to zoom

NCP1034DR2G Details

  • Manufacturer Part Number:

    NCP1034DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.2

  • Additional Feature:

    ALSO OPERATES IN VOLTAGE MODE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    HYSTERETIC CURRENT MODE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1034DR2G Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the NCP1034DR2G is 18V, but it's recommended to operate within the specified input voltage range of 7V to 15V for optimal performance and reliability.
  • The NCP1034DR2G is rated to operate from -40°C to 125°C. Ensure proper thermal design, including heat sinking and airflow, to keep the device within its specified temperature range. Monitor the device's temperature and adjust the design as needed to prevent overheating.
  • Follow good PCB design practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and loops. Place the input and output capacitors close to the device, and use a shielded inductor to reduce EMI. Consult the application note and onsemi's PCB layout guidelines for more information.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (e.g., 1.5 μH to 3.3 μH). Ensure the inductor is rated for the maximum output current and has a high self-resonant frequency to minimize EMI. Consult the application note and inductor manufacturer's datasheet for more information.
  • Use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 1 μF to 10 μF, depending on the input voltage and desired ripple performance. Ensure the capacitor is rated for the maximum input voltage and has a low equivalent series resistance (ESR) to minimize voltage ripple.
