Description:Integrated 700 V MOSFET with RDS(on) of 4.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1076A/B = 650mA and NCP1077A/B = 800 mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thick copper traces for the input and output pins, and minimizing the thermal resistance between the device and the ambient air. A 4-layer PCB with a solid ground plane is also recommended.
To ensure reliable start-up, make sure the input voltage is within the specified range, the output capacitor is properly sized, and the feedback network is correctly configured. Also, ensure that the input voltage ramp-up time is slow enough to prevent the converter from oscillating or malfunctioning during start-up.
When selecting the output capacitor, consider the output voltage ripple, output current, and equivalent series resistance (ESR). A low-ESR capacitor with a high ripple current rating is recommended. The output capacitor should also be able to handle the maximum output current and voltage of the converter.
To troubleshoot oscillations or instability, check the PCB layout for any signs of resonance or noise coupling. Ensure that the input and output capacitors are properly sized and placed. Also, verify that the feedback network is correctly configured and that the compensation components are properly selected. If necessary, add additional filtering or damping components to the circuit.
The thermal design considerations for the NCP1076BAP065G include ensuring good airflow around the device, using a heat sink or thermal pad if necessary, and minimizing the thermal resistance between the device and the ambient air. The device's thermal pad should be connected to a solid ground plane or a heat sink to ensure effective heat dissipation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1076BAP065G Overview

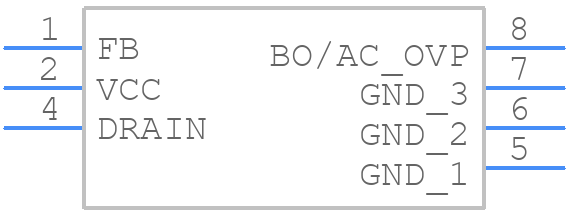

Use the download button to access the NCP1076BAP065G schematic symbol, PCB footprint, and 3D model.
