NCP1076BBP065G - onsemi

Description: Integrated 700 V MOSFET with RDS(on) of 4.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1076A/B = 650mA and NCP1077A/B = 800 mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power

Download NCP1076BBP065G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

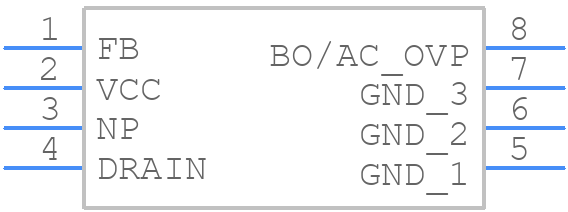

NCP1076BBP065G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP1076BBP065G - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP8 LESS PIN 3 CASE 626AS ISSUE O
click to zoom
3D Models
NCP1076BBP065G - onsemi - 3D model - Dual-In-Line Packages - PDIP8 LESS PIN 3 CASE 626AS ISSUE O
click to zoom

NCP1076BBP065G Details

  • Manufacturer Part Number:

    NCP1076BBP065G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP8 Less Pin 3

  • Manufacturer Package Code:

    626AS

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • JESD-30 Code:

    R-PDIP-T7

  • Length:

    9.32 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Seated Height-Max:

    4.45 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    71 kHz

  • Technology:

    MOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

NCP1076BBP065G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable startup, ensure that the input voltage rises monotonically and does not droop during startup. Also, add a soft-start capacitor (Css) to limit the inrush current and prevent voltage overshoots.
  • The maximum allowed capacitance on the output of the converter is 220uF. Exceeding this value may cause instability or oscillations in the converter.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
  • The recommended input capacitor type is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The recommended value is 10uF to 22uF, depending on the input voltage and current requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP1076BBP065G Overview

Use the download button to access the NCP1076BBP065G schematic symbol, PCB footprint, and 3D model.
