Description:Integrated 700 V MOSFET with RDS(on) of 4.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1076A/B = 650mA and NCP1077A/B = 800 mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power
A good PCB layout for the NCP1077AAP100G should prioritize thermal management, minimize noise, and ensure good power supply decoupling. Place the device close to the input capacitors, and use a solid ground plane to reduce EMI. Keep the output traces short and wide to minimize inductance.
To ensure the NCP1077AAP100G operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Use thermal monitoring and overcurrent protection to prevent damage. Also, ensure the device is operated within its recommended operating conditions, such as input voltage range and output current rating.
The recommended input capacitor type for the NCP1077AAP100G is a low-ESR ceramic capacitor, such as X5R or X7R. The recommended value is 10uF to 22uF, with a voltage rating of at least 25V. This ensures stable operation and minimizes input voltage ripple.
To troubleshoot issues with the NCP1077AAP100G, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its recommended operating conditions. Check for proper PCB layout, decoupling, and thermal management. Use an oscilloscope to monitor the output voltage and input voltage ripple. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the NCP1077AAP100G is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade ICs. However, ensure that the device is operated within its recommended operating conditions, and follow proper design and manufacturing guidelines to ensure reliability and robustness.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1077AAP100G Overview

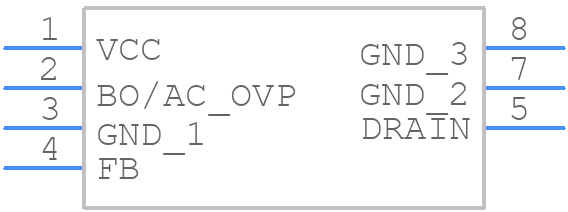

Use the download button to access the NCP1077AAP100G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10,
or try a keyword search, such as Switching Regulator or Controllers
