Description:Integrated 700 V MOSFET with RDS(on) of 4.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1076A/B = 650mA and NCP1077A/B = 800 mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the copper traces wide and short to reduce thermal resistance.
To ensure reliable startup and shutdown, make sure to follow the recommended soft-start and shutdown procedures, and use a suitable input capacitor to filter out noise and voltage transients.
When selecting the output inductor and capacitor, consider the desired output voltage ripple, inductor core loss, and capacitor ESR. Choose components with suitable ratings and characteristics to ensure stable operation and minimize losses.
To troubleshoot oscillations or instability, check the PCB layout for potential noise coupling or thermal issues, verify the component values and ratings, and use an oscilloscope to analyze the waveforms and identify the root cause of the problem.
Operating the converter at high temperatures can reduce its reliability and lifespan. Ensure that the device is operated within its recommended temperature range, and consider using thermal management techniques such as heat sinks or fans to keep the temperature within safe limits.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1077BAP100G Overview

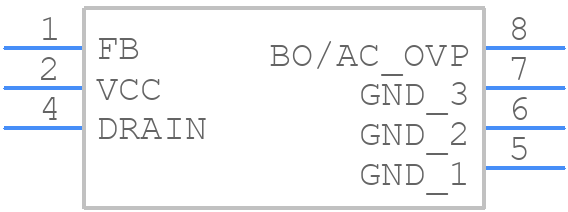

Use the download button to access the NCP1077BAP100G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10,
or try a keyword search, such as Switching Regulator or Controllers
