NCP1077BBP100G - onsemi

Description: Integrated 700 V MOSFET with RDS(on) of 4.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1076A/B = 650mA and NCP1077A/B = 800 mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power

Download NCP1077BBP100G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

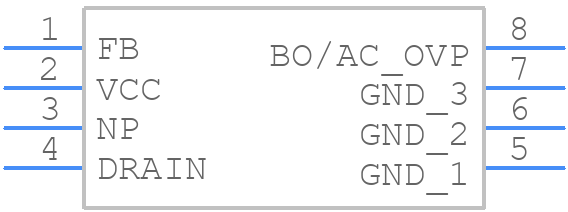

NCP1077BBP100G - onsemi - PCB symbol
click to zoom
PCB Footprints

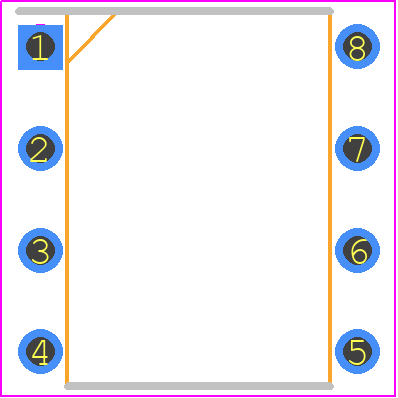

NCP1077BBP100G - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NCP1077BBP100G
click to zoom
3D Models
NCP1077BBP100G - onsemi - 3D model - Dual-In-Line Packages - NCP1077BBP100G
click to zoom

NCP1077BBP100G Details

  • Manufacturer Part Number:

    NCP1077BBP100G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    PDIP8 Less Pin 3

  • Manufacturer Package Code:

    626AS

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • JESD-30 Code:

    R-PDIP-T7

  • Length:

    9.32 mm

  • Number of Functions:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP7/8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Packing Method:

    TUBE

  • Seated Height-Max:

    4.45 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    110 kHz

  • Technology:

    MOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

NCP1077BBP100G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1077BBP100G should include a solid ground plane, a separate power plane for the input voltage, and a heat sink attached to the tab of the package. The layout should also minimize the distance between the input capacitors and the device pins.
  • To ensure reliable start-up, make sure the input voltage is within the specified range, the input capacitors are properly sized, and the soft-start capacitor is correctly sized and connected. Also, ensure that the output voltage is not pre-biased before start-up.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • While it is possible to use a lower value for the bootstrap capacitor, it is not recommended as it may affect the stability of the converter. The recommended value is 100nF.
  • The output voltage ripple can be calculated using the following formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP1077BBP100G Overview

Use the download button to access the NCP1077BBP100G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10, or try a keyword search, such as Switching Regulator or Controllers
