Description:Integrated 700 V MOSFET with RDS(on) of 4.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1076A/B = 650mA and NCP1077A/B = 800 mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the copper traces wide and short to reduce thermal resistance.
To ensure reliable startup and shutdown, make sure to follow the recommended startup and shutdown sequences, use a soft-start circuit to limit inrush current, and add a UVLO (Under-Voltage Lockout) circuit to prevent the device from operating outside its specified voltage range.
When selecting input and output capacitors, consider the voltage rating, capacitance value, ESR (Equivalent Series Resistance), and ripple current rating. Choose capacitors with low ESR and high ripple current rating to minimize voltage ripple and ensure stable operation.
To troubleshoot issues with the NCP1077BBP130G, use an oscilloscope to monitor the input and output voltages, check for proper PCB layout and component selection, and verify that the device is operating within its specified voltage and current ranges. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Thermal management considerations for the NCP1077BBP130G include ensuring good airflow around the device, using a heat sink or thermal pad, and keeping the device away from other heat sources. Monitor the device's junction temperature and ensure it stays within the specified range to prevent thermal shutdown or damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1077BBP130G Overview

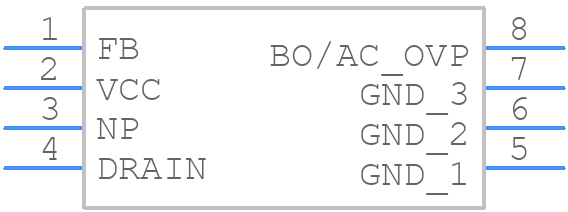

Use the download button to access the NCP1077BBP130G schematic symbol, PCB footprint, and 3D model.
