Description:Integrated 700 V MOSFET with RDS(on) of 2.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1079A/B = 1,050mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power Protection; 2nd Level
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable startup and shutdown, make sure to follow the recommended startup and shutdown sequences, use a soft-start circuit to limit inrush current, and add a UVLO (Under-Voltage Lockout) circuit to prevent the device from operating at low input voltages.
Critical components that affect EMI performance include the input filter, output filter, and PCB layout. Using a pi-filter or a common-mode choke at the input, and a LC filter at the output can help reduce EMI. Additionally, keeping the PCB layout compact and using a shielded enclosure can also improve EMI performance.
To optimize the device for low standby power consumption, use a low-standby-current controller, disable unnecessary features, and use a low-power mode or shutdown mode when the device is not in use. Additionally, using a high-efficiency transformer and optimizing the output voltage can also help reduce standby power consumption.
Recommended test and measurement equipment for characterizing the device include an oscilloscope, a signal generator, a DC power supply, a current probe, and a thermal camera. These tools can help measure parameters such as output voltage, current, and temperature, as well as EMI and efficiency.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1079AAP065G Overview

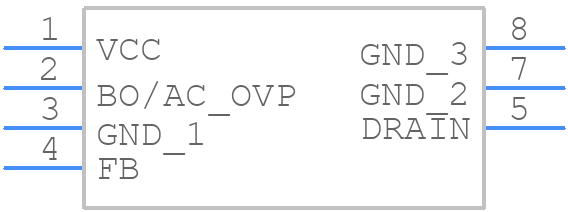

Use the download button to access the NCP1079AAP065G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10,
or try a keyword search, such as Switching Regulator or Controllers
