Description:Integrated 700 V MOSFET with RDS(on) of 2.7 Ω; Current-Mode Fixed Frequency Operation (65 & 100 kHz) - 130 kHz for B version only; Peak Current: NCP1079A/B = 1,050mA; Skip-Cycle Operation at Low Peak Current; Dynamic Self-Supply (DSS); Auto-Recovery Output Short Circuit Protection with Timer-Based Detection; Frequency Foldback Operation; 300 µA No Load Power Consumption; Frequency Jittering (including during frequency foldback mode); Adjustable Brown-out Protection and OVP; Over Power Protection; 2nd Level
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the copper traces wide and short to reduce thermal resistance.
To ensure reliable startup and shutdown, make sure to follow the recommended soft-start and shutdown procedures, and use a suitable input capacitor to filter out noise and voltage transients.
When selecting the output inductor and capacitor, consider the desired output voltage ripple, inductor core loss, and capacitor ESR. Choose components that meet the recommended specifications and are suitable for the operating frequency and temperature range.
To troubleshoot common issues, check the PCB layout, component selection, and input/output connections. Verify that the input voltage is within the recommended range, and that the output voltage is properly regulated. Use an oscilloscope to measure the output voltage and current waveforms, and consult the datasheet and application notes for guidance.
For high-power applications, consider using a heat sink or thermal interface material to improve heat dissipation. Ensure good airflow around the device, and avoid blocking the airflow with nearby components or obstacles.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1079ABP065G Overview

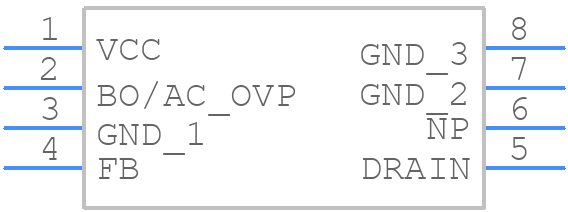

Use the download button to access the NCP1079ABP065G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10,
or try a keyword search, such as Switching Regulator or Controllers
