NCP1081DEG - onsemi

Description: Delivers up to 40 W; Full operation to TJ=150C; Robust 3.0 kV cable ESD protection; Exposed TSSOP-20 EP package

Download NCP1081DEG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

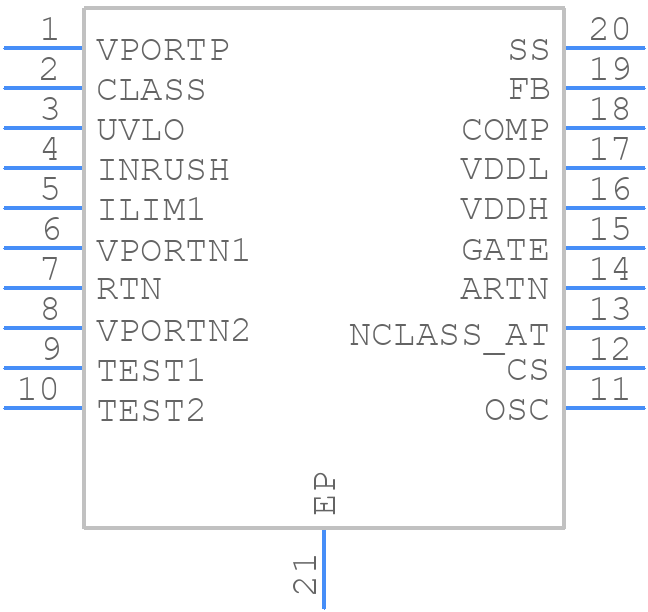

NCP1081DEG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP1081DEG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−20 EP
click to zoom
3D Models
NCP1081DEG - onsemi - 3D model - Small Outline Packages - TSSOP−20 EP
click to zoom

NCP1081DEG Details

  • Manufacturer Part Number:

    NCP1081DEG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-20 EP, 6.5x4.4

  • Pin Count:

    20

  • Manufacturer Package Code:

    948AB

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    47 Weeks, 1 Day

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Time@Peak Reflow Temperature-Max (s):

    30

NCP1081DEG Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 25V or higher, to ensure stable operation and minimize input voltage ripple.
  • To ensure the NCP1081DEG operates within its SOA, ensure the input voltage is within the recommended range (7V to 18V), the output current is within the rated current limit (1A), and the junction temperature is below the maximum rating (150°C).
  • The EN pin is used to enable or disable the regulator. When the EN pin is pulled high (above 2.5V), the regulator is enabled, and when it's pulled low (below 0.8V), the regulator is disabled.
  • The output voltage of the NCP1081DEG can be calculated using the formula: Vout = 1.235V x (1 + R2/R1), where R1 and R2 are the resistors connected to the FB (feedback) pin.
  • The thermal resistance of the NCP1081DEG is 45°C/W (junction-to-ambient) and 10°C/W (junction-to-case).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP1081DEG Overview

Use the download button to access the NCP1081DEG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10, or try a keyword search, such as Power Management Circuits
