NCP1090DBRG - onsemi

Description: Fully supports IEEE 802.3af specifications - Allows for up to 15W of power - Certified interoperability between PoE devices; 500 mA operational current limit; Industrial temperature range -40°C to 85°C with full operation up to 125°C junction temperature; Vertical N-Channel DMOS pass switch offers the robustness of discrete MOSFETs

Download NCP1090DBRG Model

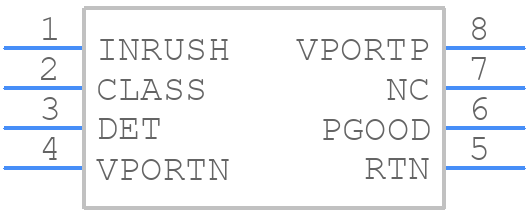

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

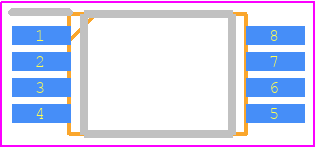

NCP1090DBRG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−8
click to zoom

NCP1090DBRG Details

  • Manufacturer Part Number:

    NCP1090DBRG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP 8 LEAD 3.0x4.4x1.1 mm

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    948S

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLERS

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.9 mA

  • Supply Voltage-Max (Vsup):

    57 V

  • Supply Voltage-Nom (Vsup):

    48 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +31V

  • Width:

    3 mm

NCP1090DBRG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the component side of the PCB clear of copper to minimize thermal resistance.
  • Ensure that the input voltage is within the specified range, and the output capacitor is properly sized to handle the inrush current. Also, add a soft-start circuit to limit the inrush current.
  • The maximum allowed capacitance on the output is 220uF. Exceeding this value may cause instability or oscillations in the converter.
  • While the datasheet recommends a specific inductor value and type, you can use a different one as long as it meets the specified inductance, DC resistance, and saturation current requirements.
  • Check the PCB layout, component values, and soldering quality. Ensure that the input and output capacitors are properly sized and placed. Also, verify that the inductor is not saturating.
