Description:Fully supports IEEE 802.3af specifications - Allows for up to 15W of power - Certified interoperability between PoE devices; 500 mA operational current limit; Industrial temperature range 40°C to 85°C with full operation up to 125°C junction temperature; Vertical N-Channel DMOS pass switch offers the robustness of discrete MOSFETs
A good PCB layout for optimal thermal performance involves placing the NCP1092DRG near the edge of the board, using a solid ground plane, and minimizing thermal vias. It's also recommended to use a thermal pad on the bottom of the IC and to connect it to a copper plane on the PCB.
To ensure reliable start-up of the converter, make sure the input voltage is within the specified range, the output capacitor is properly sized, and the soft-start capacitor is correctly chosen. Also, ensure that the enable pin is properly biased and the converter is not overloaded during start-up.
The maximum allowed output capacitance for stable operation depends on the specific application and output voltage. As a general rule, the output capacitance should be limited to 100uF or less to ensure stability. However, it's recommended to consult the datasheet and application notes for specific guidance.
To troubleshoot oscillations or instability issues in the converter, check the PCB layout for any signs of resonance, ensure the input and output capacitors are properly sized and placed, and verify that the feedback loop is properly compensated. Also, check for any signs of overheating or overloading.
The recommended input capacitor type is a low-ESR ceramic or film capacitor with a value of 10uF to 22uF. The exact value depends on the specific application and input voltage ripple requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1092DRG Overview

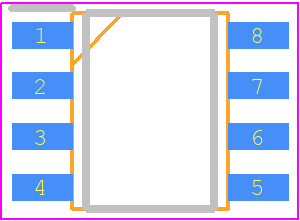

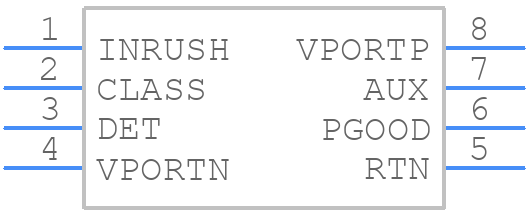

Use the download button to access the NCP1092DRG schematic symbol, PCB footprint, and 3D model.
