NCP1095DBR2 - onsemi

Description: IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af compliant - Allows for up to 90 W of power - Guaranteed interoperability between PoE devices; Part of ON Semiconductor’s family of high efficiency solutions for PoE-PD; Uses an external pass transistor to support high-power applications; Includes an auxiliary detection pin for applications powered by PoE or wall adaptors; Supports Auto-classification (Autoclass) Feature, allowing the Power Sourcing Equipment (PSE) to assign power to each Powered Device(PD) efficientl

Download NCP1095DBR2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

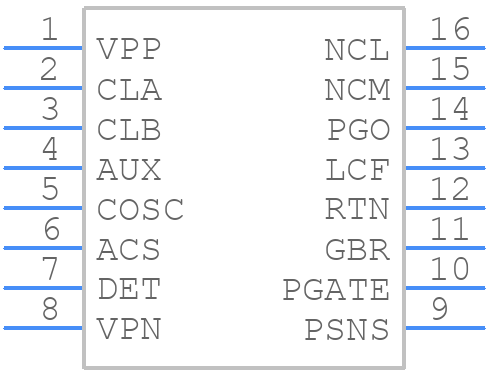

NCP1095DBR2 - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP1095DBR2 - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP 16
click to zoom
3D Models
NCP1095DBR2 - onsemi - 3D model - Small Outline Packages - TSSOP 16
click to zoom

NCP1095DBR2 Details

  • Manufacturer Part Number:

    NCP1095DBR2

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-16

  • Manufacturer Package Code:

    948

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-10-26

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    PoE POWERED DEVICE CONTROLLER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    57 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

NCP1095DBR2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1095DBR2 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
  • To ensure reliable startup and shutdown, ensure that the input voltage rises and falls monotonically, and that the enable pin (EN) is properly driven. A soft-start circuit can also be implemented to limit inrush current during startup.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10-22uF is recommended for the input capacitor. This helps to filter out input voltage noise and reduce the risk of oscillation.
  • To minimize ripple and noise, use a low-ESR output capacitor (e.g., ceramic or polymer) with a value of 10-47uF. Add a small series resistor (e.g., 1-10 ohms) to dampen the output filter and reduce ringing.
  • The maximum allowed junction temperature for the NCP1095DBR2 is 150°C. Ensure that the device is properly cooled, and that the thermal pad is connected to a solid ground plane to prevent overheating.
