The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the copper traces wide and short can help to reduce thermal resistance.
To ensure reliable start-up of the NCP10970A1DR2G, it is recommended to use a soft-start circuit to limit the inrush current during power-up. Additionally, ensuring that the input voltage rises slowly and monotonically can help to prevent false triggering of the overvoltage protection circuit.
The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage can cause damage to the internal logic circuitry. It is recommended to use a voltage divider or a zener diode to limit the voltage on the EN pin to 5V or less.
The output voltage ripple of the NCP10970A1DR2G can be calculated using the following formula: ΔVout = (Iout * Rl) / (fsw * Cout), where Iout is the output current, Rl is the load resistance, fsw is the switching frequency, and Cout is the output capacitance.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. This helps to filter out high-frequency noise and ensure stable operation of the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP10970A1DR2G Overview

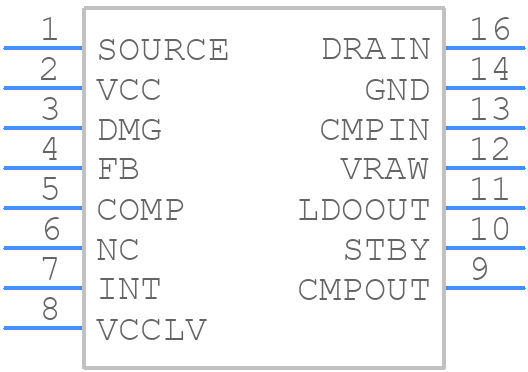

Use the download button to access the NCP10970A1DR2G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP10,
or try a keyword search, such as Switching Regulator or Controllers
