Description:No Auxiliary Winding Operation; Internal Output Short-Circuit Protection; Extremely Low No-Load Standby Power; Current-Mode with Skip-Cycle Capability; Internal Leading Edge Blanking; 250 mA Peak Current Source/Sink Capability; Internally Fixed Frequency at 40 kHz, 60 kHz and 100 kHz; Direct Optocoupler Connection; Built-in Frequency Jittering for Lower EMI; SPICE Models Available for TRANsient and AC Analysis; Internal Temperature Shutdown; Pb-Free Packages are Available
A good PCB layout for the NCP1200D40R2G should include a solid ground plane, wide power traces, and a thermal relief pattern around the device. A minimum of 2oz copper thickness is recommended. Additionally, a thermal pad on the bottom of the device should be connected to a solid ground plane to improve heat dissipation.
To ensure reliable start-up, make sure the input voltage is within the specified range, and the input capacitor is properly sized to handle the inrush current. Also, ensure that the soft-start capacitor is properly sized and the soft-start time is set correctly. Finally, verify that the feedback loop is stable and the output voltage is within the specified range.
The maximum allowed output capacitance for stability is dependent on the specific application and output voltage. As a general rule, the output capacitance should be limited to 10uF to 22uF for a 12V output, and 4.7uF to 10uF for a 5V output. However, it's recommended to consult the datasheet and application notes for specific guidance.
To optimize the design for low standby power consumption, ensure that the device is in shutdown mode during standby, and the input voltage is reduced to the minimum required level. Additionally, consider using a low-quiescent-current regulator for the bias supply, and optimize the transformer design for low core losses.
Key considerations for EMI filtering and shielding include using a common-mode choke and X-capacitors to filter common-mode noise, and a differential-mode inductor to filter differential-mode noise. Additionally, ensure that the PCB layout is optimized for EMI reduction, and consider using shielding techniques such as metal cans or mu-metal shielding to reduce radiated emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1200D40R2G Overview

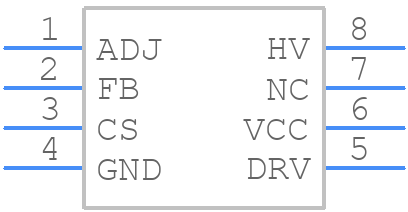

Use the download button to access the NCP1200D40R2G schematic symbol, PCB footprint, and 3D model.
