Description:High-Voltage Start Up Current Source; Auto-Recovery Internal Output Short-Circuit Protection; Extremely Low No-Load Standby Power; Current-Mode with Adjustable Skip-Cycle Capability; Internal Leading Edge Blanking; 250 mA Peak Current Capability; Internally Fixed Frequency at 40 kHz, 61 kHz and 100 kHz; Direct Optocoupler Connection; Undervoltage Lockout at 7.6 V Typical; SPICE Models Available for TRANsient and AC Analysis; Pin to Pin Compatible with NCP1200; Pb-Free Packages are Available
A good PCB layout for the NCP1203D60R2G should include a solid ground plane, wide power traces, and a thermal relief pattern on the pads to ensure good heat dissipation. A 2-layer or 4-layer board with a thermal via under the IC is recommended.
To ensure reliable startup and shutdown, make sure to follow the recommended startup and shutdown sequences outlined in the datasheet. Also, ensure that the input voltage is within the specified range and that the output capacitor is properly sized to handle the inrush current.
The maximum allowed input voltage ripple for the NCP1203D60R2G is 10% of the nominal input voltage. Exceeding this limit may affect the converter's stability and efficiency.
While it's possible to use a different inductor value or type, it's not recommended as it may affect the converter's performance, efficiency, and stability. The recommended inductor value and type are carefully selected to ensure optimal performance and should be used whenever possible.
To troubleshoot issues with the NCP1203D60R2G, start by checking the PCB layout, component values, and soldering quality. Verify that the input voltage, output voltage, and current are within the specified ranges. Use an oscilloscope to check for oscillations or instability, and consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1203D60R2G Overview

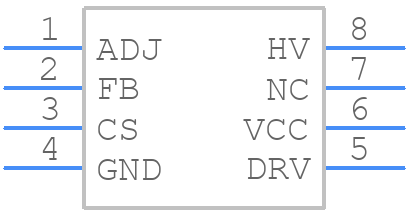

Use the download button to access the NCP1203D60R2G schematic symbol, PCB footprint, and 3D model.
