Description:Peak current mode control; Adjustable switching frequency; Latched primary overcurrent protection with 10 ms fixed delay; Adjustable soft start timer; Auto recovery brown out detection; Extended Vcc range up to 28 V with auto recovery UVLO; Internal 160 ns leading edge blanking; Frequency jittering; Adjustable internal ramp compensation ; +500 mA / -800 mA Source/Sink current driver capability; Skip cycle operation in light/no load operation; SOIC-8 package
A good PCB layout for the NCP1252ADR2G should include a solid ground plane, short and direct traces for the input and output pins, and a decoupling capacitor (e.g., 10uF) between the VIN and GND pins. Additionally, the layout should minimize electromagnetic interference (EMI) and ensure good thermal dissipation.
The input capacitor (CIN) should be a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 1uF to 10uF. The output capacitor (COUT) should be a low-ESR ceramic or electrolytic capacitor with a value between 10uF to 22uF. The capacitor values and types should be chosen based on the specific application requirements, such as output voltage ripple and transient response.
The NCP1252ADR2G has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It is recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance and reliability.
Proper thermal management is crucial for the NCP1252ADR2G. Ensure good airflow around the device, and consider using a heat sink or thermal pad to improve heat dissipation. The device's thermal pad should be soldered to a solid ground plane or a thermal via to facilitate heat dissipation.
The recommended input voltage range for the NCP1252ADR2G is 4.5V to 18V. The maximum input current limit is 1.5A. Exceeding these limits may damage the device or affect its performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1252ADR2G Overview

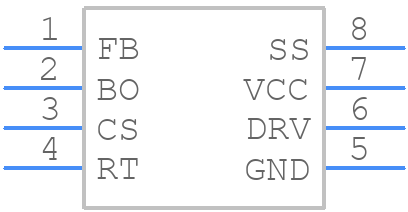

Use the download button to access the NCP1252ADR2G schematic symbol, PCB footprint, and 3D model.
