NCP1342AMAACD1R2G - onsemi

Description: QR Frequency Jittering; Quiet-Skip Technology; Integrated HV Startup with Brownout Protection; Valley Switching Operation with Valley Lockout; Integrated X2 Capacitor Discharge Capability; NTC Compatible Fault Pin; High Drive Capability: -500 mA / +800 mA; Latch input for OVP and OTP implementation; Minimum Peak Current Modulation for Rapid Frequency Foldback (RFF)

Download NCP1342AMAACD1R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

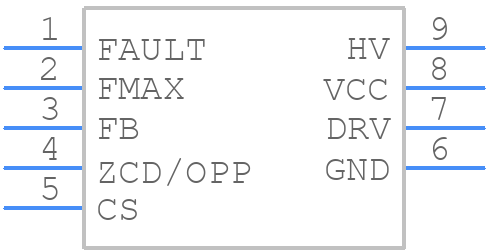

Symbol
NCP1342AMAACD1R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP1342AMAACD1R2G - onsemi PCB footprint - Other - Other - SOIC−9 NB CASE 751BP ISSUE A_1
click to zoom
3D Models
NCP1342AMAACD1R2G - onsemi - 3D model - Other - SOIC−9 NB CASE 751BP ISSUE A_1
click to zoom

NCP1342AMAACD1R2G Details

  • Manufacturer Part Number:

    NCP1342AMAACD1R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-9 NB

  • Manufacturer Package Code:

    751BP

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-10-09

  • Manufacturer:

    onsemi

  • YTEOL:

    7.2

  • Additional Feature:

    ALSO HAS PWM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G9

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP9/10,.24,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    560 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1342AMAACD1R2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable start-up in a noisy environment, it's recommended to add a soft-start circuit to limit the inrush current and to use a high-quality input capacitor to filter out noise. Additionally, consider adding a voltage supervisor to monitor the output voltage and reset the converter if it's not within the desired range.
  • The maximum allowed input voltage ripple for reliable operation is typically 10% of the nominal input voltage. Exceeding this limit may cause the converter to malfunction or oscillate.
  • To optimize output voltage accuracy and stability, it's recommended to use a high-quality output capacitor with low ESR, and to adjust the feedback resistors to achieve the desired output voltage. Additionally, consider adding a voltage reference IC to improve output voltage accuracy.
  • The recommended input capacitors are X7R or X5R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. For the output capacitor, a low-ESR ceramic or electrolytic capacitor with a voltage rating of at least 1.5 times the output voltage is recommended.
