NCP1342AMDCDDD1R2G - onsemi

Description: Integrated High-Voltage Startup Circuit with Brownout Detection Integrated X2 Capacitor Discharge Capability Wide VCC Range from 9 V to 28 V 28 V VCC Overvoltage Protection Abnormal Overcurrent Fault Protection for Winding Short Circuit or Saturation Detection Internal Temperature Shutdown Valley Switching Operation with Valley-Lockout for Noise-Free Operation Frequency Foldback with 25 kHz Minimum Frequency Clamp for Increased Efficiency at Light Loads Rapid Frequency Foldback for Fast Reduction of Switchi

Download NCP1342AMDCDDD1R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

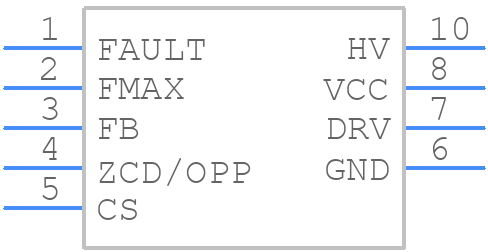

NCP1342AMDCDDD1R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP1342AMDCDDD1R2G - onsemi PCB footprint - Other - Other - SOIC-9 NB-1
click to zoom

NCP1342AMDCDDD1R2G Details

  • Manufacturer Part Number:

    NCP1342AMDCDDD1R2G

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP1342AMDCDDD1R2G Overview

Use the download button to access the NCP1342AMDCDDD1R2G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP13, or try a keyword search, such as Switching Regulator or Controllers
