A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 2-layer or 4-layer PCB with a solid ground plane is recommended. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
To ensure the device operates within the recommended operating conditions, it's essential to monitor the input voltage, output voltage, and output current. The device should be operated within the recommended voltage range (Vin = 4.5V to 18V) and output voltage range (Vout = 0.8V to Vin - 1V). Additionally, the output current should not exceed the maximum recommended value (Iout = 2A).
When handling the device, it's essential to take precautions to prevent damage from electrostatic discharge (ESD). Handle the device by the body or pins, avoid touching the pins or die, and use an ESD wrist strap or mat. Store the device in an anti-static bag or wrap it in anti-static material when not in use.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the recommended operating conditions. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for troubleshooting guidelines and common failure modes.
The device has a maximum junction temperature (Tj) of 150°C. Ensure good thermal conductivity between the device and the heat sink or thermal pad. Use a thermal interface material (TIM) to fill any gaps between the device and the heat sink. Monitor the device temperature and ensure it operates within the recommended temperature range (Tj = -40°C to 150°C).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1342BMDCDD1R2G Overview

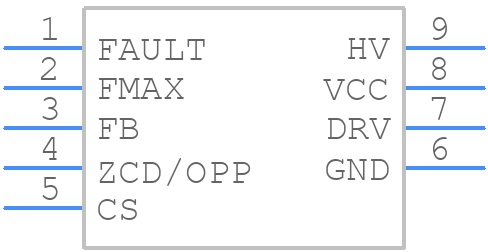

Use the download button to access the NCP1342BMDCDD1R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP13,
or try a keyword search, such as Switching Regulator or Controllers
