The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the copper traces wide and short can help to reduce thermal resistance.
To ensure reliable start-up of the converter, make sure to follow the recommended start-up sequence, which involves applying the input voltage before enabling the device. Also, ensure that the input voltage is within the specified range and that the output capacitor is properly sized to handle the inrush current.
The maximum allowed output capacitance for the NCP1345Q00D1R2G is not explicitly stated in the datasheet, but as a general rule, it is recommended to keep the output capacitance below 100uF to avoid stability issues. However, the actual maximum allowed capacitance may vary depending on the specific application and operating conditions.
The NCP1345Q00D1R2G is rated for operation up to 150°C, but the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output power and ensure proper thermal management to prevent overheating.
To troubleshoot issues with the device's overcurrent protection, check the input voltage, output current, and sense resistor values to ensure they are within the specified ranges. Also, verify that the device is properly configured and that the overcurrent protection threshold is set correctly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1345Q00D1R2G Overview

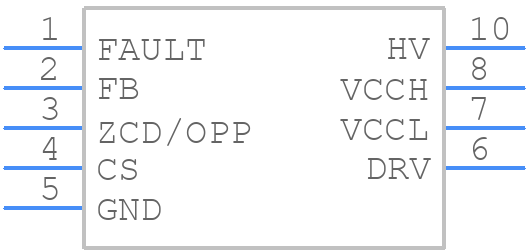

Use the download button to access the NCP1345Q00D1R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP13,
or try a keyword search, such as Switching Regulator or Controllers
