A good PCB layout for the NCP1351BDR2G should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 10uF) between VIN and GND. Additionally, keep the input and output capacitors close to the IC and use short, wide traces for the power lines.
To ensure the NCP1351BDR2G operates within its SOA, use a soft-start circuit to limit the inrush current during startup, and add a voltage supervisor to monitor the output voltage and prevent the IC from operating outside its SOA during shutdown.
The NCP1351BDR2G is rated for operation from -40°C to 125°C. As the ambient temperature increases, the IC's performance may degrade, including reduced efficiency, increased dropout voltage, and potential thermal shutdown.
Choose input capacitors with a high ripple current rating and low ESR (e.g., X5R or X7R ceramic capacitors). For output capacitors, select ones with low ESR and high capacitance (e.g., tantalum or polymer capacitors). Ensure the capacitors meet the IC's recommended specifications and are suitable for the application's voltage and current requirements.
Common mistakes to avoid include: not following the recommended PCB layout, using inadequate input and output capacitors, not providing sufficient thermal dissipation, and not ensuring the IC operates within its SOA during startup and shutdown.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1351BDR2G Overview

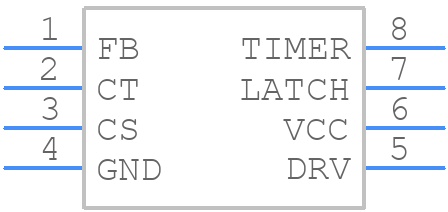

Use the download button to access the NCP1351BDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP13,
or try a keyword search, such as Switching Regulator or Controllers
