NCP137AFCT110T2G - onsemi

Description: Ultra-Low Dropout of Typ. 40mV; Adjustable Voltage version; 40 mV typical dropout at the full 700 mA load.; Guaranteed Output Current from 0mA to 700mA; 0.5% Typical Output Voltage Accuracy; Output Current in Excess of 700mA; Output Active Discharge option available

Download NCP137AFCT110T2G Model

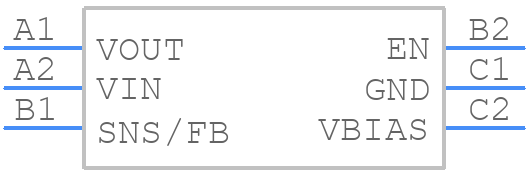

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP137AFCT110T2G - onsemi PCB footprint - BGA - BGA - WLCSP6, 1.20x0.80 CASE 567MV ISSUE A
click to zoom
3D Models
NCP137AFCT110T2G - onsemi  - 3D model - BGA - WLCSP6, 1.20x0.80 CASE 567MV ISSUE A
click to zoom

NCP137AFCT110T2G Details

  • Manufacturer Part Number:

    NCP137AFCT110T2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-6

  • Manufacturer Package Code:

    567MV

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-09-26

  • Manufacturer:

    onsemi

  • YTEOL:

    9.3

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.06 V

  • Dropout Voltage1-Nom:

    0.3 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.4 V

  • JESD-30 Code:

    R-PBGA-B6

  • JESD-609 Code:

    e3

  • Length:

    1.2 mm

  • Line Regulation-Max:

    0.000451%

  • Load Regulation-Max:

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    85 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.7 A

  • Output Voltage1-Max:

    1.111 V

  • Output Voltage1-Min:

    1.089 V

  • Output Voltage1-Nom:

    1.1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XFBGA

  • Package Equivalence Code:

    BGA6,2X3,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, EXTREMELY THIN PROFILE, FINE PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.33 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    0.8 mm

NCP137AFCT110T2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad with a minimum size of 10mm x 10mm, and connecting it to a large copper area on the PCB to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, it is recommended to follow the thermal design guidelines, use a heat sink if necessary, and ensure that the device is operated within the specified temperature range of -40°C to 150°C.
  • The maximum allowed voltage on the VIN pin is 18V, but it is recommended to operate the device within the specified input voltage range of 7V to 15V for optimal performance and reliability.
  • To troubleshoot issues with the device not turning on, check the input voltage, ensure that the enable pin is properly biased, and verify that the device is not in an over-temperature or over-current shutdown state.
  • The recommended input capacitor value is 10uF to 22uF, and it is recommended to use a low-ESR ceramic capacitor with an X7R or X5R dielectric to ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP137AFCT110T2G Overview

Use the download button to access the NCP137AFCT110T2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP13, or try a keyword search, such as Linear Regulator ICs
