NCP1395BDR2G - onsemi

Description: High Frequency Operation from 50 kHz up to 1.0 MHz; Selectable Minimum Switching Frequency with ±3% Accuracy; Timer-Based Input with Auto-Recovery Operation for Delayed Event Reaction; Adjustable Deadtime from 150 ns to 1.0 µs; Startup Sequence via an Adjustable Soft--Start; Brown-Out Protection for a Simpler PFC Association; Latched Input for Severe Fault Conditions, e.g. Overtemperature or OVP; Enable Input for Immediate Event reaction or Simple ON/OFF Control; Operational Transconductance Amplifier (OTA)

Download NCP1395BDR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

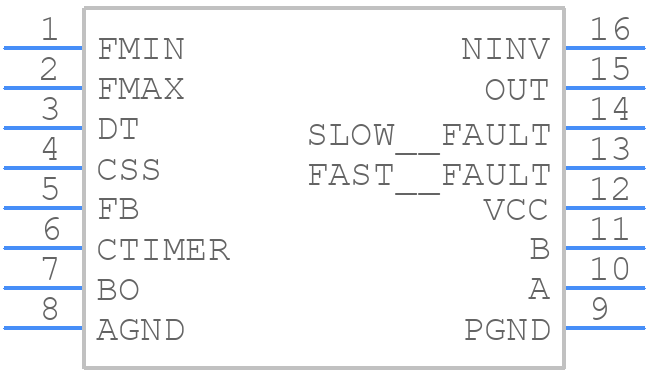

Symbol
NCP1395BDR2G - onsemi - PCB symbol
click to zoom

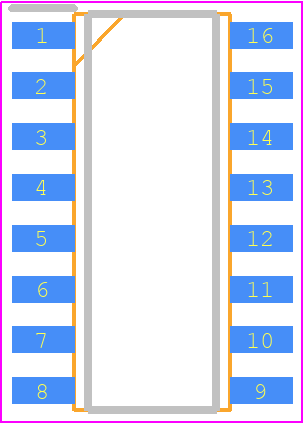

PCB Footprints
NCP1395BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - ADG5421BCPZ-RL7
click to zoom
3D Models
NCP1395BDR2G - onsemi - 3D model - Small Outline Packages - ADG5421BCPZ-RL7
click to zoom

NCP1395BDR2G Details

  • Manufacturer Part Number:

    NCP1395BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    8.3 V

  • Input Voltage-Nom:

    11 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    1000 kHz

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1395BDR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1395BDR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the input and output capacitors are of high quality and have low ESR. Also, ensure the feedback resistors are of high precision and the layout is well-designed to minimize noise and parasitic inductance.
  • The NCP1395BDR2G can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The NCP1395BDR2G is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation and to prevent overheating.
  • The output voltage of the NCP1395BDR2G can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the feedback resistors, Vin is the input voltage, and Vref is the reference voltage (typically 2.5V).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP1395BDR2G Overview

Use the download button to access the NCP1395BDR2G schematic symbol, PCB footprint, and 3D model.
