NCP13992AGDR2G - onsemi

Description: Quiet Skip Mode technique; Current Mode Control Scheme; Automatic Dead−time with Maximum Dead−time Clamp

Download NCP13992AGDR2G Model

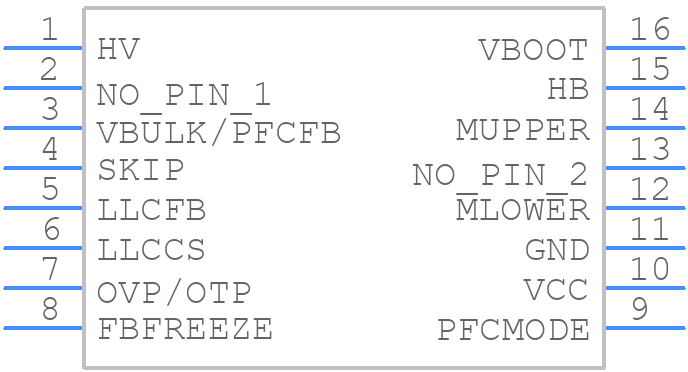

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP13992AGDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 NB MISSING PINS 2 AND 13 CASE 751DU ISSUE O
click to zoom
3D Models
NCP13992AGDR2G - onsemi  - 3D model - Small Outline Packages - SOIC−16 NB MISSING PINS 2 AND 13 CASE 751DU ISSUE O
click to zoom

NCP13992AGDR2G Details

  • Manufacturer Part Number:

    NCP13992AGDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16 NB

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751DU

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7.2

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    16.3 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14/16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    750 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP13992AGDR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP13992AGDR2G should ensure that the high-frequency switching nodes (e.g., SW node) are kept as short as possible and away from sensitive analog nodes. A solid ground plane and a low-impedance power supply path are also crucial. Refer to the onsemi application note AND8393/D for more detailed layout guidelines.
  • When selecting an inductor for the NCP13992AGDR2G, consider the inductor's saturation current, DC resistance, and self-resonant frequency. A good starting point is to choose an inductor with a saturation current rating above the peak current of the converter and a DC resistance that minimizes power loss. Refer to the onsemi application note AND8393/D for more detailed guidance on inductor selection.
  • The NCP13992AGDR2G is rated for operation from -40°C to +125°C ambient temperature. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure that the device is operated within the recommended temperature range for optimal performance and reliability.
  • To troubleshoot issues with the NCP13992AGDR2G, start by verifying the input voltage, output voltage, and current levels. Check the PCB layout for any signs of damage or poor construction. Use an oscilloscope to inspect the switching waveforms and identify any anomalies. Consult the onsemi application note AND8393/D for troubleshooting guidelines and common failure modes.
  • The NCP13992AGDR2G is an automotive-qualified device, meeting the requirements of AEC-Q100 Grade 1. However, it's essential to ensure that the device is used within its specified operating conditions and that the system design meets the required safety and reliability standards for the target application.
