Description:Dedicated PFC and LLC Communication; Automatic Dead−time with Maximum Dead−time Clamp; Quiet Skip Mode; Integrated 700 V High Voltage Start Up and X2-Capacitor Discharge Function as well as Gate Drivers; Current Mode Control Scheme; Full Load Operating Frequency Up to 750 kHz
A good PCB layout for the NCP13994AADR2G involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the device away from high-current carrying traces.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input voltage with a capacitor and to use a snubber network to dampen any ringing on the output.
The NCP13994AADR2G has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
Yes, the NCP13994AADR2G is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's still important to follow proper design and manufacturing practices to ensure the device operates within its specified parameters.
To troubleshoot issues with the NCP13994AADR2G, start by checking the input and output voltages, as well as the device's operating frequency. Use an oscilloscope to check for any signs of oscillation or instability. Also, verify that the device is properly soldered and that there are no signs of physical damage. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP13994AADR2G Overview

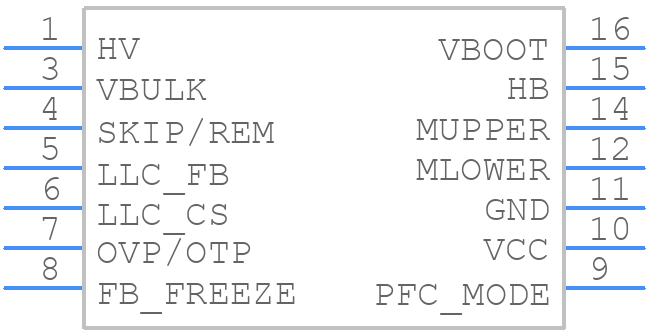

Use the download button to access the NCP13994AADR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP13,
or try a keyword search, such as Switching Regulator or Controllers
