A good PCB layout for the NCP1399AIDR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the NCP1399AIDR2G operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating of 150°C.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be rated for the maximum input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple.
To troubleshoot issues with the NCP1399AIDR2G, check the input voltage, output current, and junction temperature. Verify that the input voltage is within the recommended range, the output current is within the maximum rating, and the junction temperature is below the maximum rating. Check for any signs of overheating, such as excessive heat sink temperature or reduced output voltage.
Yes, the NCP1399AIDR2G is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing practices to ensure the reliability of the final product.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1399AIDR2G Overview

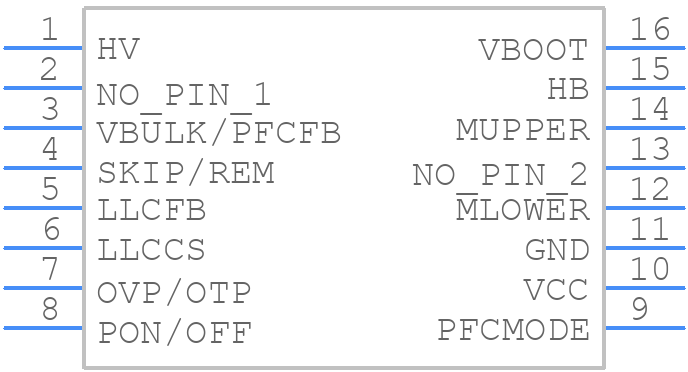

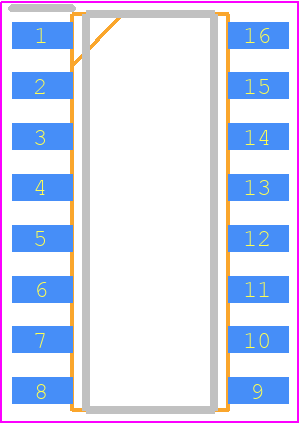

Use the download button to access the NCP1399AIDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP13,
or try a keyword search, such as Switching Regulator or Controllers
