Part Image

NCP1566MNTXG - onsemi

Description: 5 V/2% Voltage Reference; Over Voltage Protection through a dedicated pin; Both Voltage Mode Control and Current Mode Control; Line feedforward; Adaptive Overlap time Control; Integrated 120 V HV Startup; Programmable Line Undervoltage Lockout (UVLO) with Adjustable Hysteresis; Cycle by Cycle Peak Current Limiting; Adjustable Over Power Protection & Overcurrent Protection Based on Average Current; Programmable Duty Ratio Clamp; Programmable Soft-Start; Programmable Shutdown and Restart Delays; Programmable

Download NCP1566MNTXG Model

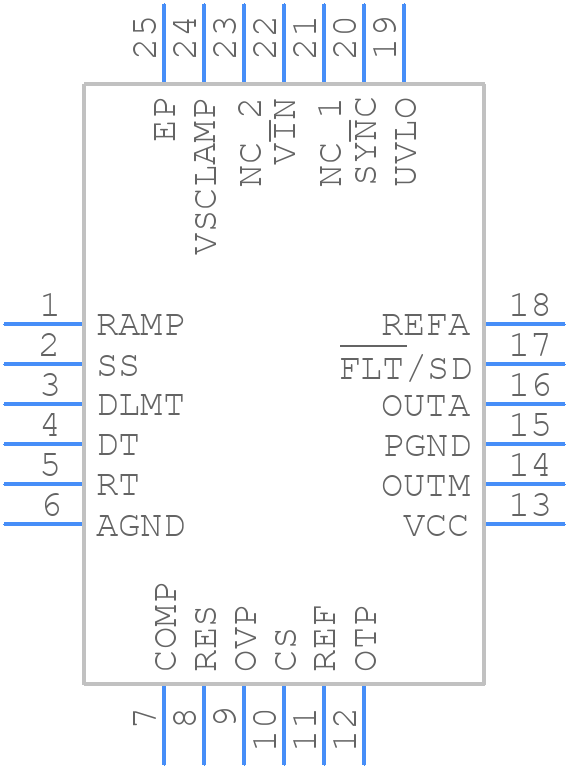

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1566MNTXG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24, 4x4, 0.5P
click to zoom
3D Models
NCP1566MNTXG - onsemi  - 3D model - Quad Flat No-Lead - QFN24, 4x4, 0.5P
click to zoom

NCP1566MNTXG Details

  • Manufacturer Part Number:

    NCP1566MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-24

  • Package Description:

    QFN-24

  • Manufacturer Package Code:

    485CW

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-05-14

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Additional Feature:

    ZVS

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    6.5 V

  • Input Voltage-Nom:

    10 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

NCP1566MNTXG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1566MNTXG involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and output capacitors with a voltage rating of at least 1.5 times the maximum output voltage. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor. X5R or X7R ceramic capacitors are recommended.
  • The maximum ambient temperature range for the NCP1566MNTXG is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • To ensure stability, make sure the input and output capacitors are properly selected and placed close to the IC. Also, ensure that the PCB layout is well-designed, and the input and output traces are short and wide. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms for the output capacitor is recommended.
  • The maximum output current capability of the NCP1566MNTXG is 3A. However, the output current should be derated based on the ambient temperature and the input voltage.
