NCP1579DR2G - onsemi

Description: Input voltage range from 4.5 to 13.2V; Voltage Mode PWM Control; 0.8V +/- 2.0% Internal Reference Voltage; Adjustable Output voltage; Capacitor Programmable Soft-Start; Internal 1A Gate Driver; Programmable Current Limit

Download NCP1579DR2G Model

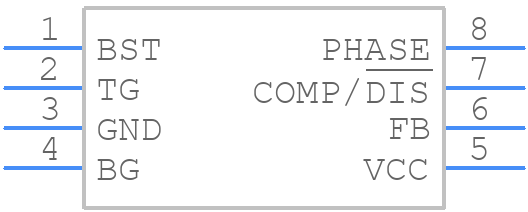

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1579DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
NCP1579DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

NCP1579DR2G Details

  • Manufacturer Part Number:

    NCP1579DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8 TO 5 V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    13.2 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    317 kHz

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1579DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1579DR2G should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 10uF) between VIN and GND. Additionally, keep the input and output capacitors close to the IC and use short, wide traces for the power lines.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that exceeds the output voltage. A good starting point is a 10uF input capacitor and a 22uF output capacitor.
  • The NCP1579DR2G is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and thermal design. Ensure proper thermal management to prevent overheating, especially in high-power applications.
  • To ensure stability, follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are properly selected, and the feedback network is correctly configured. If oscillations occur, check the PCB layout, component values, and feedback network for any errors or deviations from the recommended design.
  • The NCP1579DR2G is capable of delivering up to 2A of output current, but the actual current capability depends on the input voltage, output voltage, and thermal design. Ensure that the device is properly cooled and the output current is within the recommended specifications to prevent overheating and damage.
