NCP1605ADR2G - onsemi

Description: High Voltage Startup Current Source; Fixed Frequency, Discontinous Conduction Mode (DCM) or Critical ; Soft-Skip during Standby Mode; PFC ready signal; Fast Line / Load Transient Compensation ; Valley Turn on; Output Under and Over Voltage Protection; Brown-Out Detection; Soft-Start for Smooth Start-up Operation; Over Current Limitation; Latched Off Capability

Download NCP1605ADR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

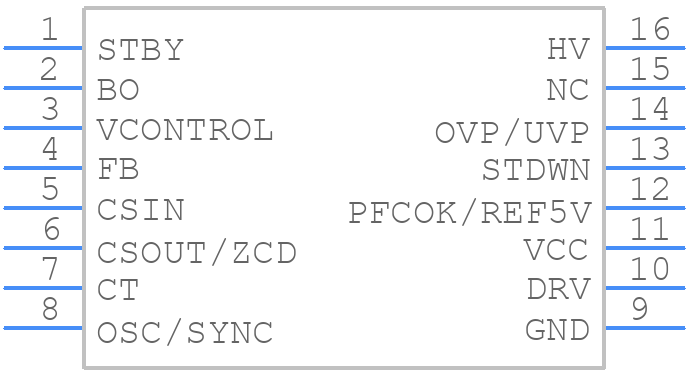

Symbol
NCP1605ADR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP1605ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 CASE 751B−05 ISSUE K
click to zoom
3D Models
NCP1605ADR2G - onsemi - 3D model - Small Outline Packages - SOIC−16 CASE 751B−05 ISSUE K
click to zoom

NCP1605ADR2G Details

  • Manufacturer Part Number:

    NCP1605ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    16 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    250 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1605ADR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1605ADR2G should include a solid ground plane, a small thermal loop area, and a heat sink attached to the exposed pad. The datasheet provides a recommended PCB layout, but it's essential to follow good thermal design practices to ensure optimal performance.
  • To ensure stability, follow the recommended component values and PCB layout in the datasheet. Additionally, make sure to decouple the input and output with suitable capacitors, and use a low-ESR output capacitor to minimize oscillations.
  • The NCP1605ADR2G is rated for operation up to 85°C ambient temperature. However, it's essential to consider the device's power dissipation, thermal resistance, and airflow when designing the system to ensure reliable operation.
  • While the NCP1605ADR2G is a high-performance device, it's essential to evaluate its suitability for high-reliability or automotive applications. onsemi provides additional documentation and support for these applications, including AEC-Q100 qualification and PPAP documentation.
  • To troubleshoot issues, start by verifying the PCB layout, component values, and input/output connections. Use an oscilloscope to monitor the output voltage and current. Check for thermal issues by measuring the device temperature and ensuring proper heat sinking. Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP1605ADR2G Overview

Use the download button to access the NCP1605ADR2G schematic symbol, PCB footprint, and 3D model.
