Description:Near Unity Power Factor; Critical Conduction mode with current controlled frequency foldback; Dynamic Response Enhancer; Soft Overvoltage Protection (S-OVP); -500 mA/+800 mA Drive Capability; Valley Turn On; Wide Vcc Range of 9.5-35V; Two Vcc Startup Versions: 10.5V (A) and 17V (B); AC Line Brownout Detection; Cycle-by-cycle current protection; Saturated Inductor and shorted boost or bypass protection; Open Pin Protection including Ground; Undervoltage and Fast Over voltage protection
A good PCB layout for the NCP1611BDR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the NCP1611BDR2G operates within its SOA, use a soft-start circuit to limit the inrush current during startup, and add a shutdown circuit to slowly discharge the output capacitors during shutdown. Monitor the input voltage, output voltage, and current to prevent overvoltage, undervoltage, and overcurrent conditions.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be rated for the maximum input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple and ensure stable operation.
Choose an output capacitor with a low ESR and a value that meets the required output ripple and transient response. A ceramic or polymer capacitor with a value of 22uF to 47uF is recommended. Consider the output capacitor's voltage rating, temperature range, and aging characteristics when selecting the optimal capacitor.
A good thermal management strategy for the NCP1611BDR2G involves using a heat sink with a thermal resistance of less than 10°C/W, applying a thermal interface material (TIM) to the heat sink, and ensuring good airflow around the device. Monitor the junction temperature (TJ) to prevent overheating and ensure reliable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1611BDR2G Overview

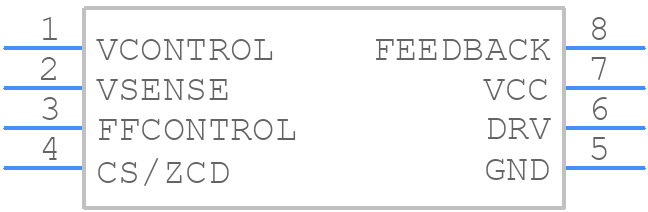

Use the download button to access the NCP1611BDR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP16,
or try a keyword search, such as Switching Regulator or Controllers
