NCP1616A1DR2G - onsemi

Description: High Voltage Start-Up Circuit; Critical conduction mode with current controlled frequency foldback; Integrated Input Filter Capacitor (X2) Discharge Circuitry; Dynamic Response Enhancer; Soft Overvoltage Protection; -500 mA/+800 mA Drive Capability; AC Line Brownout Detection

Download NCP1616A1DR2G Model

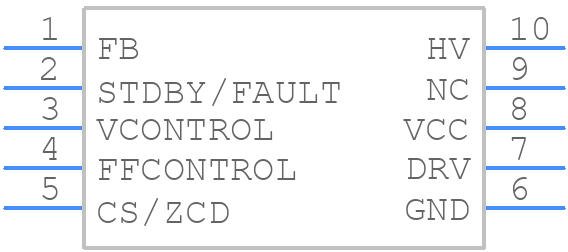

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1616A1DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-10 NB CASE 751BQ-1
click to zoom
3D Models
NCP1616A1DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-10 NB CASE 751BQ-1
click to zoom

NCP1616A1DR2G Details

  • Manufacturer Part Number:

    NCP1616A1DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC-9 NB

  • Package Description:

    SOIC-10/9

  • Manufacturer Package Code:

    751BP

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Date Of Intro:

    2017-10-13

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    9.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G9

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SOP9/10,.24,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    26 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1616A1DR2G Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A 4-layer PCB with a solid ground plane and thermal vias is also recommended.
  • To ensure reliable start-up, make sure the input voltage is within the specified range, the output capacitor is properly sized, and the soft-start capacitor is correctly selected. Also, ensure that the input voltage rises monotonically during start-up.
  • The maximum allowed overshoot on the output voltage during start-up or transient events is typically 10-15% above the nominal output voltage. Exceeding this limit may damage the device or affect its reliability.
  • To select the right output inductor, consider the output current, switching frequency, and desired ripple current. A good starting point is to use the inductor selection guide provided in the datasheet, and then validate the selection through simulation and testing.
  • The recommended method for thermal monitoring and protection involves using a thermistor or thermal diode to monitor the device temperature, and implementing a thermal shutdown or warning mechanism to prevent overheating.
