NCP1632DR2G - onsemi

Description: 180° out of phase operation; Frequency Clamped Critical conduction Mode (FCCrM) operation; Frequency foldback at low power; Integrated Overcurrent protection, Overvoltage protection, UVLO and brown-out protection

Download NCP1632DR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

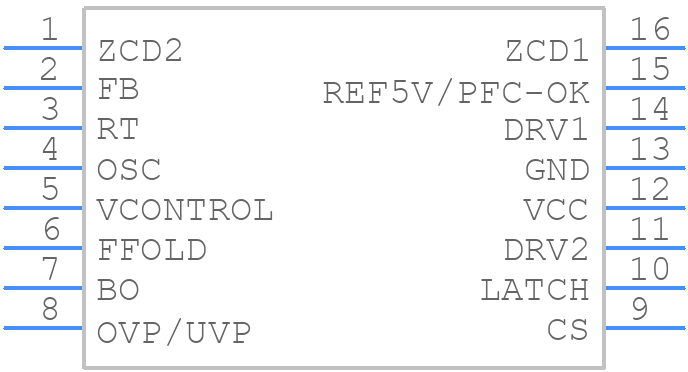

NCP1632DR2G - onsemi - PCB symbol
click to zoom
PCB Footprints

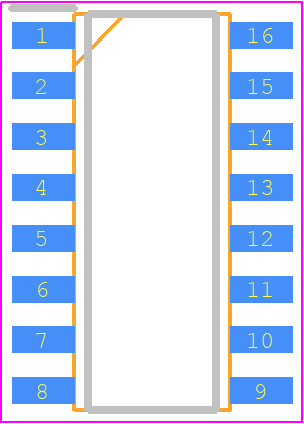

NCP1632DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom
3D Models
NCP1632DR2G - onsemi - 3D model - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom

NCP1632DR2G Details

  • Manufacturer Part Number:

    NCP1632DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-07-07

  • Manufacturer:

    onsemi

  • YTEOL:

    6.8

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    10.4 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    260 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1632DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1632DR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces connecting the input and output pins. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor is properly sized and placed close to the IC. Also, ensure the input voltage is within the recommended range, and the input capacitor is properly sized and placed close to the IC. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms is recommended for the output capacitor.
  • The maximum ambient temperature range for the NCP1632DR2G is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the NCP1632DR2G is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
  • The output voltage of the NCP1632DR2G can be calculated using the following formula: Vout = (1 + R2/R1) * Vref, where R2 and R1 are the feedback resistors, and Vref is the internal reference voltage (typically 0.8V).
